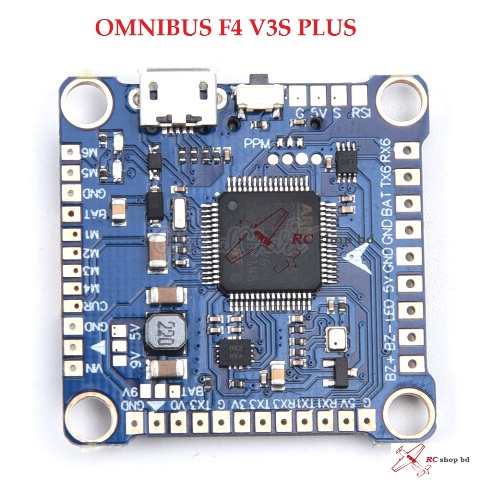

OMNIBUS F4 V3S Plus Flight Controller
3,600.00 ৳
In stock
OMNIBUS F4 V3S Plus Flight Controller
F4 V3S Plus Flight controller:
Item name: F4 V3 PLUS Flight Controller
Firmware: OMNIBUSF4SD
Size: 36x36mm
Mounting holes: 30.5×30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
MPU: MPU6000 (Send at random)

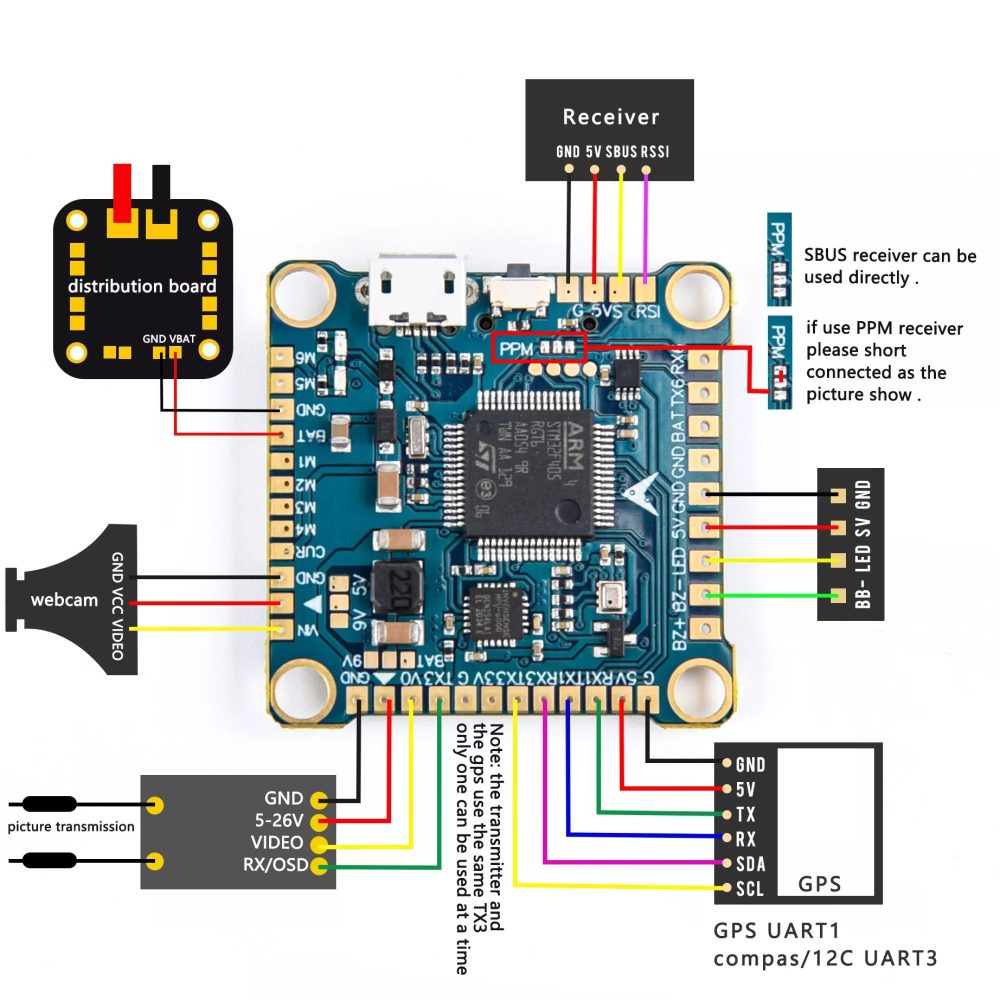

SBUS / PPM AND Spketrum DSMX ports
MicroSD card blackbox
Baro (BMP280)
5v3a 9V3A BEC
On-board video filters (only 5V to VTX and camera)
Boasting a F4 processor, on-board Betaflight OSD, MicroSD Black Box, 5v3a sbec, video filter, you’ll be tuning pids with your transmitter and
Tear it to the track in no time!
Note:
1. The F4 V3S Plus Flight Controller only support Betaflight software.
