2.4GHz Wireless Module NRF24L01
150.00 ৳ – 350.00 ৳

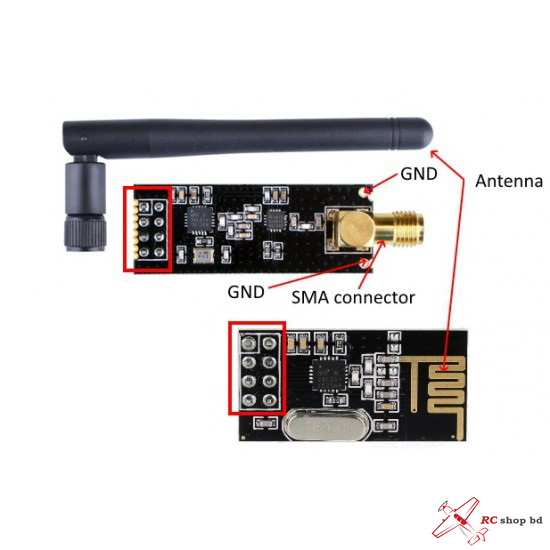

2.4GHz Wireless Module NRF24L01 with antenna or without external antenna
Description:
The real GFSK monolithic transceiver chip
Built-in hardware and link layer
Automatic response and automatic retransmission function
Address and CRC check function
Channel switching time is very short, can be used for frequency hopping
Fully compatible with nRF24XX series
The global open ISM frequency band, the maximum 0dbm transmitted power, free license to use.
Specification:
I/O can accept 5v level of input
Low working voltage: 1.9 ~ 3.6 V
Wireless rate: 1 or 2 MBPS
SPI interface rate: 0 ~ 8MBPS
125 optional channels work
Transmission distance up to 100 meters in outdoor open occasions
Package included:
1 x NRF24L01 2.4GHz antenna wireless
> select antenna option
| Option | With Ext Antenna, Without Ext Antenna |
|---|
