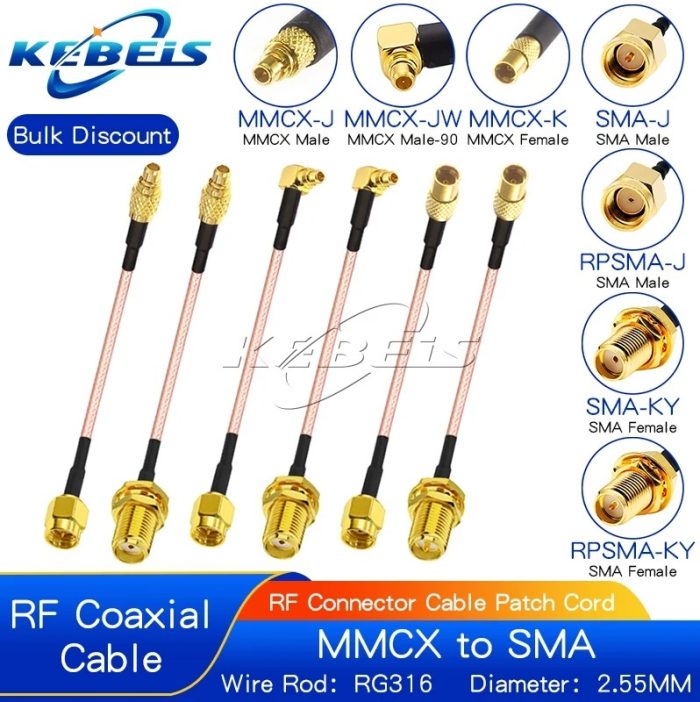

MMCX to SMA Antenna Extension Cable
Original price was: 500৳ .450৳ Current price is: 450৳ .
MMCX to SMA Antenna Extension Cable 10CM
1. MMCX Angle to SMA Female extension cable:
SMA Female connector
MMCX Male right angle
Cable type: RG316 coaxial cable
Cable length: 4inch (10cm)
Impedance: 50 ohm, Low-loss
Frequency Range: DC-6GHz
V.S.W.R: ≤ 2
Temperature Range: -55~+155°C (PE Cable -40~+85°C)
Voltage: 1000V r.m.s
Velocity of propagation (10%): 70
Capacitance (pf/m): 96.45
Max operating volatge (KVrms): 1.2
2. MMCX Straight to SMA Female extension cable:
SMA Female connector
MMCX Male Straight
Cable type: RG316 coaxial cable
Cable length: 4inch (10cm)
Impedance: 50 ohm, Low-loss
Frequency Range: DC-6GHz
V.S.W.R: ≤ 2
Temperature Range: -55~+155°C (PE Cable -40~+85°C)
Voltage: 1000V r.m.s
Velocity of propagation (10%): 70
Capacitance (pf/m): 96.45
Max operating volatge (KVrms): 1.2

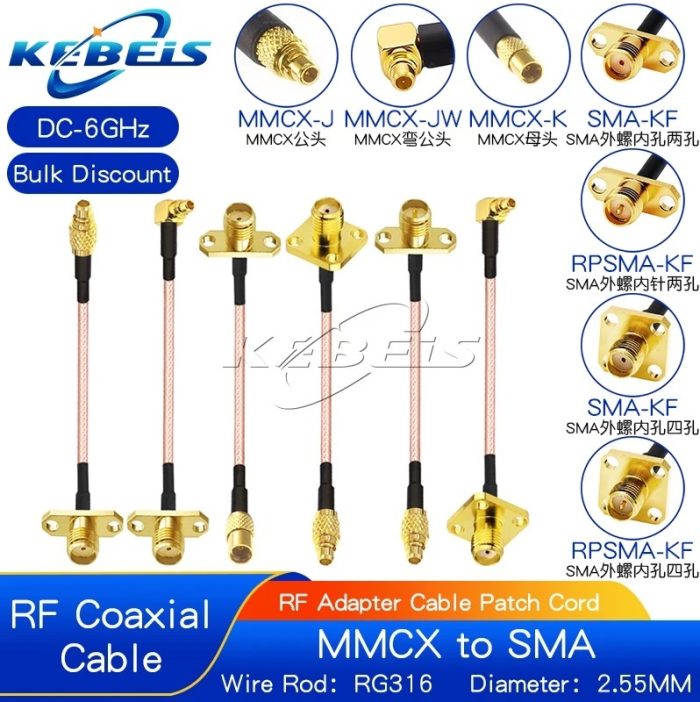

3. MMCX Angle to SMA-KF Female extension cable:
SMA-KF Female connector
MMCX Male right angle
Cable type: RG316 coaxial cable
Cable length: 4inch (10cm)
Impedance: 50 ohm, Low-loss
Frequency Range: DC-6GHz
V.S.W.R: ≤ 2
Temperature Range: -55~+155°C (PE Cable -40~+85°C)
Voltage: 1000V r.m.s
Velocity of propagation (10%): 70
Capacitance (pf/m): 96.45
Max operating volatge (KVrms): 1.2
4. MMCX Straight to SMA-KF Female extension cable:
SMA-KF Female connector
MMCX Male Straight
Cable type: RG316 coaxial cable
Cable length: 4inch (10cm)
Impedance: 50 ohm, Low-loss
Frequency Range: DC-6GHz
V.S.W.R: ≤ 2
Temperature Range: -55~+155°C (PE Cable -40~+85°C)
Voltage: 1000V r.m.s
Velocity of propagation (10%): 70
Capacitance (pf/m): 96.45
Max operating volatge (KVrms): 1.2
Package includes:
1 pcs 4inch(10cm) MMCX to SMA Antenna Extension RG316 coaxial cable
(Select 1,2,3,4 From Options)
| Options | MMCX Angle to SMA Female, MMCX Straight to SMA Female, MMCX Angle to SMA-KF Female, MMCX Straight to SMA-KF Female |
|---|
