Name: CYCLONE Nano 2.4GHz ELRS Receiver
SKU: 982
Availability: InStock

CYCLONE Nano 2.4GHz ELRS Receiver

In stock

Description
Meta Information

CYCLONE Nano 2.4GHz ELRS Receiver 2400 RX – Ultra-Low Latency

Experience the cutting edge of radio control with the CYCLONE ExpressLRS 2.4GHz Nano 2400 RX. Based on the revolutionarily open-source ExpressLRS project, this receiver provides a robust, high-refresh-rate link that outperforms traditional protocols in both speed and penetration.

Probots™ ProSpec Grade Signal Performance Engineered for the modern pilot, the CYCLONE Nano RX is Probots™ ProSpec Grade . It utilizes the SX1280/1281 RF chip combined with a high-performance ESP8285 MCU to achieve refresh rates up to 500Hz. The included high-sensitivity T-antenna ensures maximum signal capture even during aggressive maneuvers or long-distance flights. Despite its power, the unit maintains an incredibly small footprint, making it suitable for everything from tinywhoops to 7-inch long-range cruisers.

SPECIFICATIONS
Type: 2.4GHz ISM (2400MHz)
Protocol: ExpressLRS (ELRS)
MCU: ESP8285
RF Chip: Semtech SX1280/1281
Antenna Connector: IPEX / U.FL
Frequency Range: 2400 MHz to 2500 MHz
Max Refresh Rate: 500Hz
Minimum Refresh Rate: 25Hz
Working Voltage: 5V DC
Interface: Serial / CRSF

KEY APPLICATIONS & PROJECTS
FPV Racing: Ultra-fast link response for precision gate flying.
Long-Range Exploration: Reliable signal over kilometers of distance at lower refresh rates.
Weight-Critical Builds: Perfect for sub-250g drones where every milligram counts.
Unlock New Capabilities (Project Evolution)

Feature Upgrade: This receiver supports Wi-Fi firmware updates. Simply leave the receiver unconnected to your radio for 60 seconds, and it will enter a Wi-Fi mode that allows you to flash new firmware directly from your browser.

Effort Level: Intermediate. Requires soldering four wires (5V, GND, TX, RX) to your flight controller and basic configuration in Betaflight/INAV.

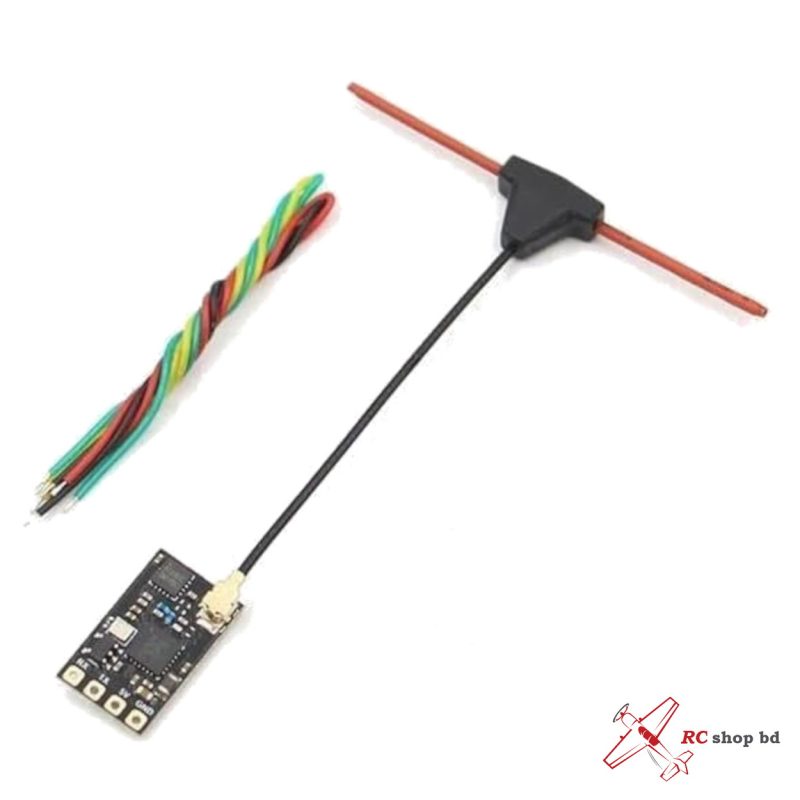

PACKAGE INCLUDED
1 x CYCLONE ELRS 2.4GHz Nano 2400 Receiver Board
1 x High-Gain T-Antenna (IPEX/U.FL connector)
1 x 4-Pin Silicone Wiring Harness (Color-coded for 5V, GND, TX, RX)
2 x Heat Shrink Tube (For board protection)

Category: Remot Cotrol & Receiver Tags: 2400 RX, CYCLONE, Nano 2.4GHz ELRS Receiver, Ultra-Low Latency
