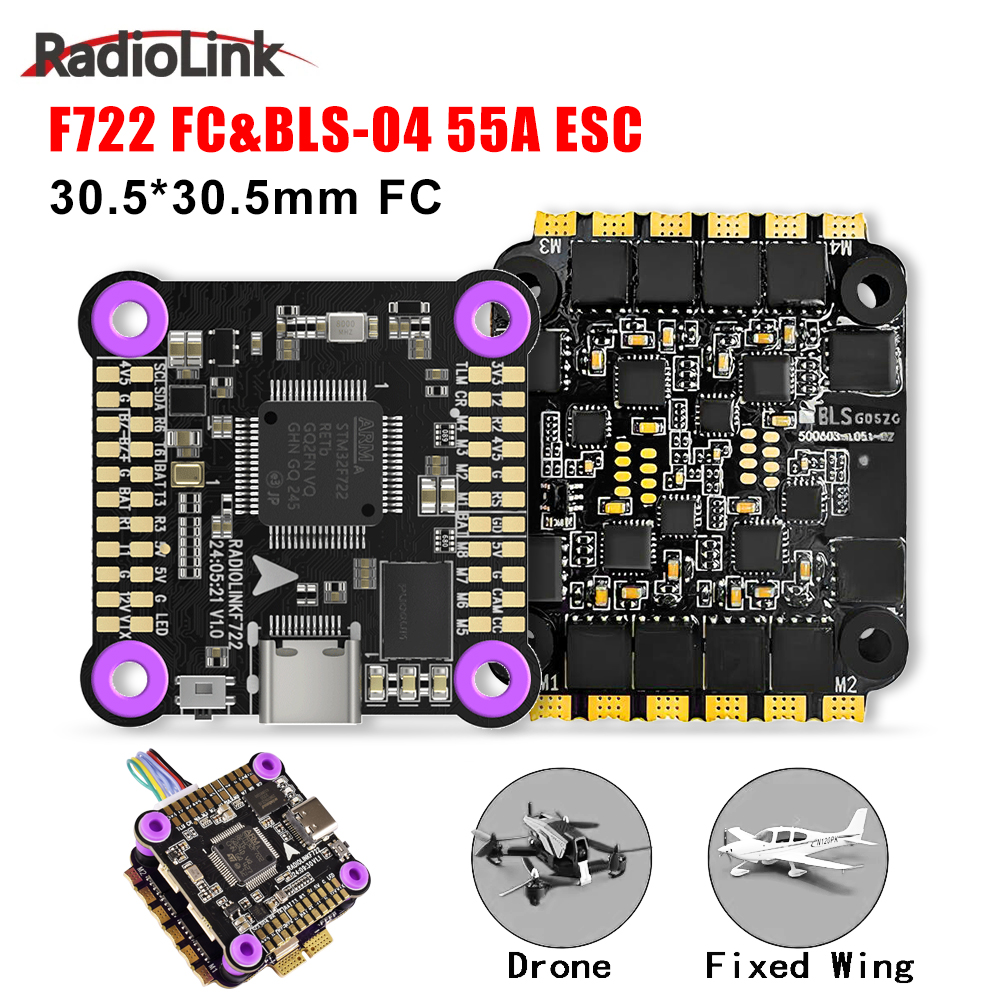

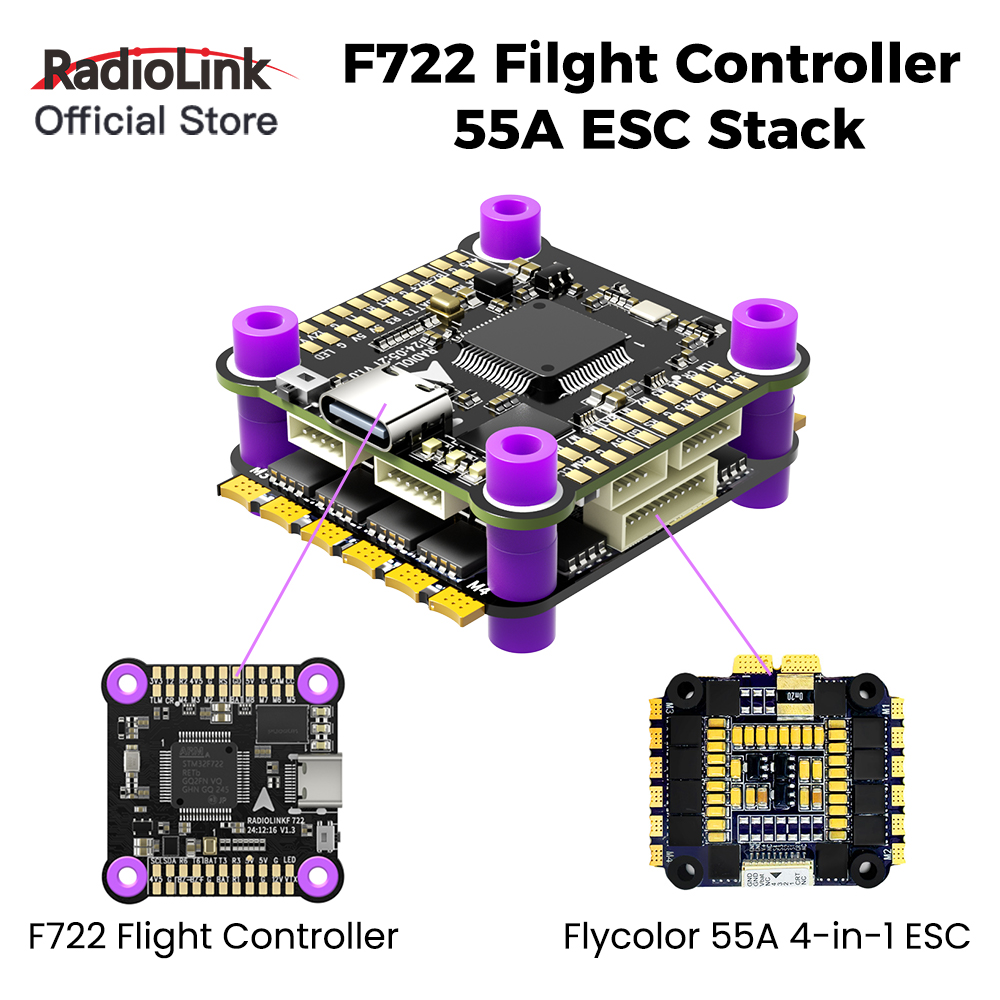

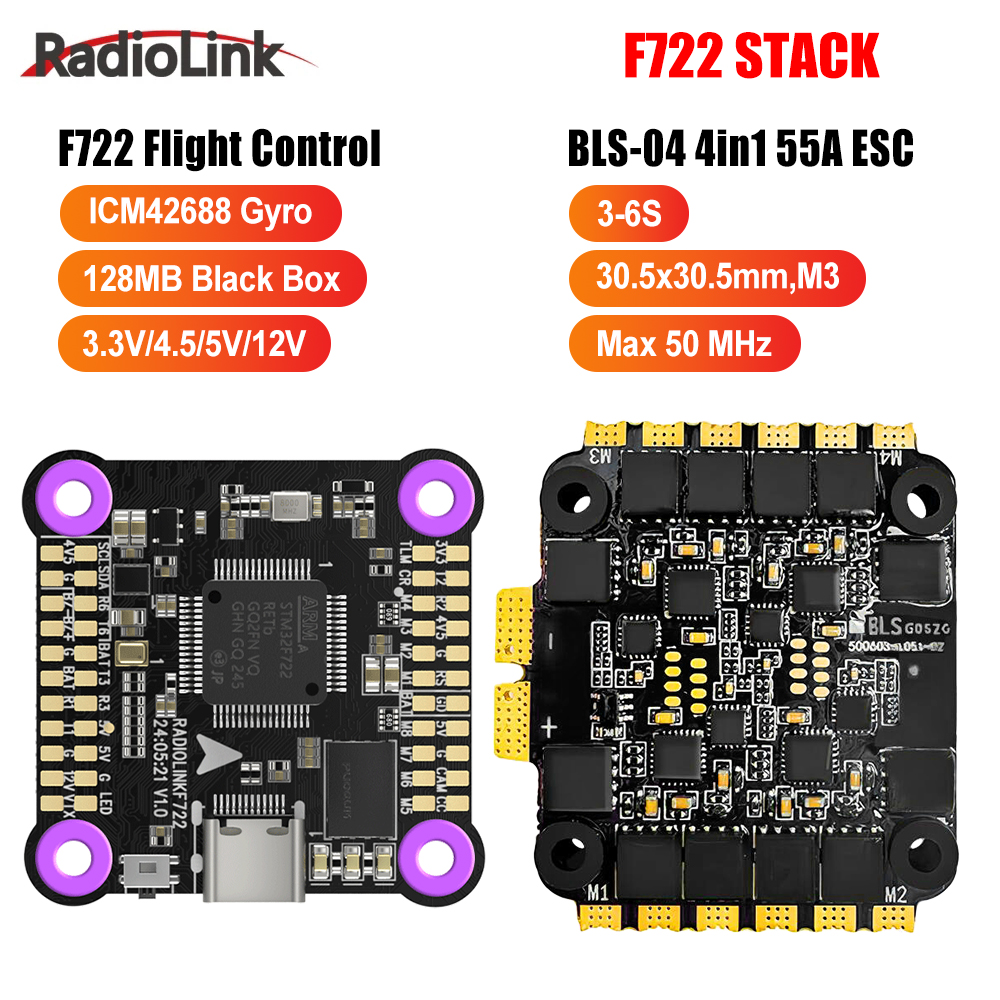

Radiolink F722 Flight Controller with 4in1 55A ESC Stack 3-6S for FPV Drone and Fixed Wing

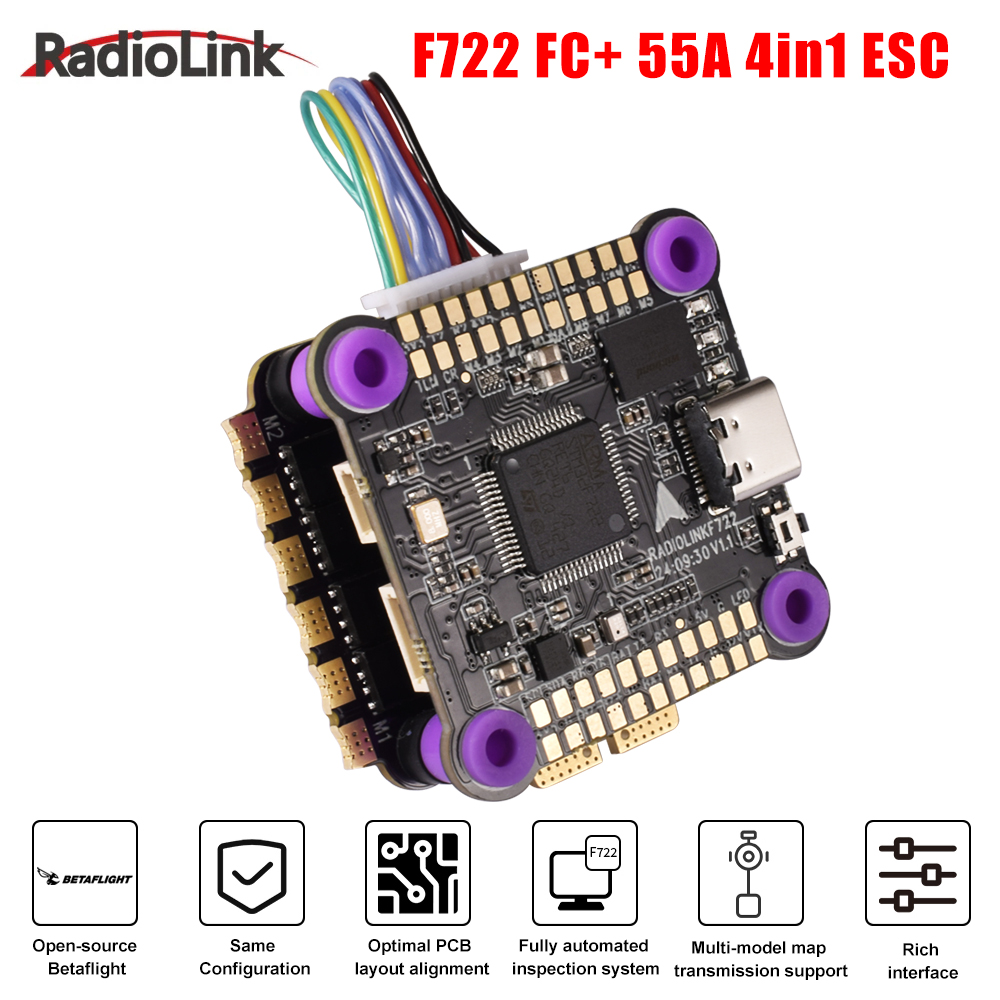

Features:

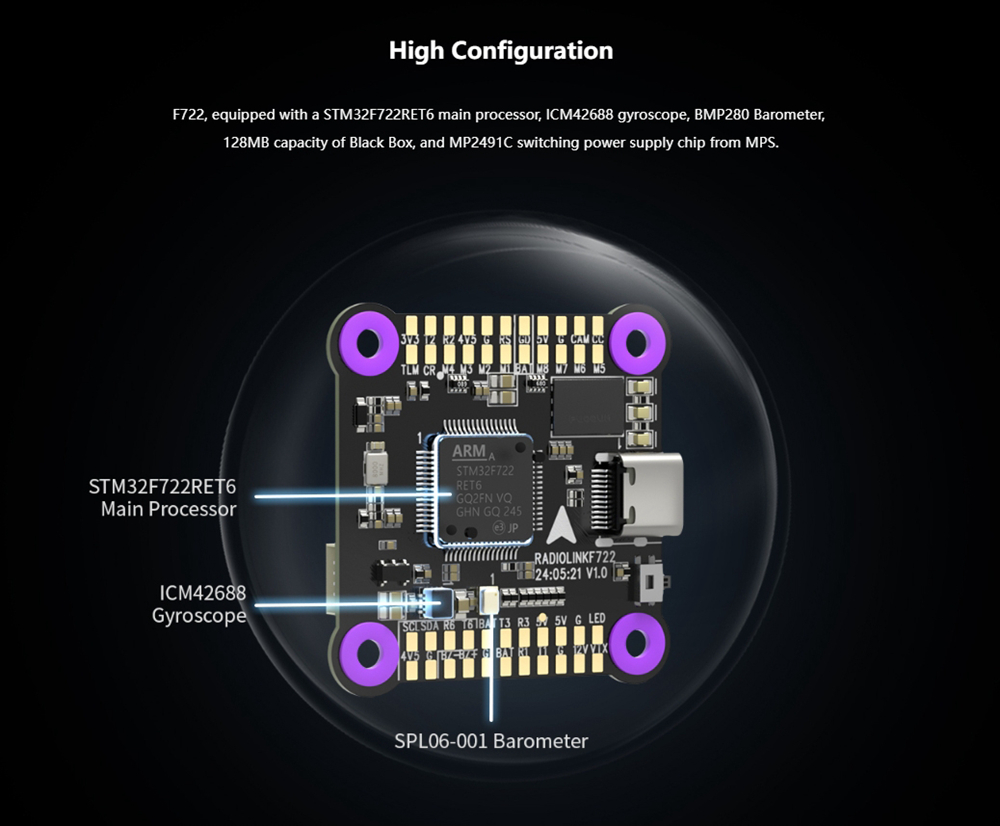

1. High Configuration: STM32F722RET6 master, ICM42688 gyroscope, SPL06-001 barometer 128MB flight log data storage, MPS brand MP2491C switching power supply chip.
2. Optimal PCB layout and alignment: repeated optimization of PCB layout alignment, to achieve the perfect combination of high current and low noise, to ensure the accuracy of the sensor.

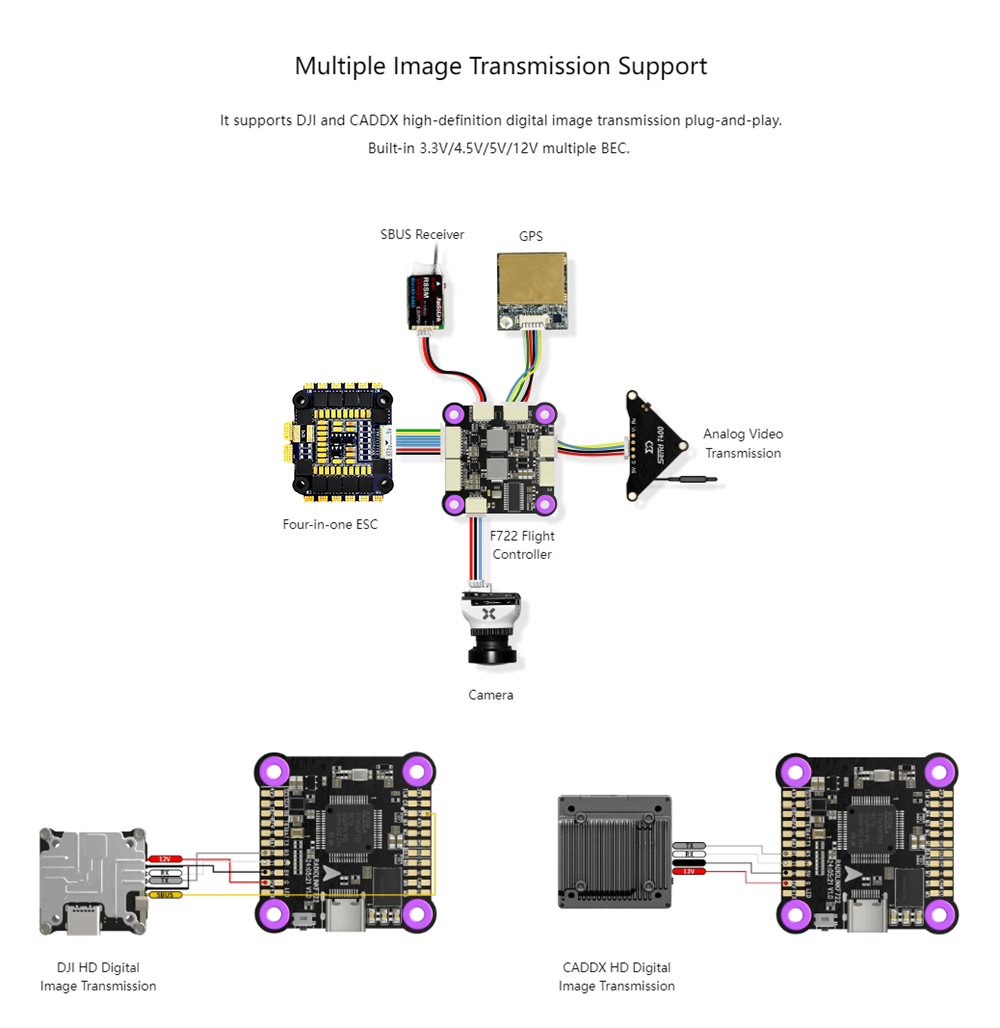

3. Multi-model transmission support: standard Dali 6pin transmission interface, snail transmission interface, built-in analog transmission OSD.
4. 3.3V/4.5/5V/12V multi-voltage power supply. 12V transmission power supply can be turned on and off by remote control.

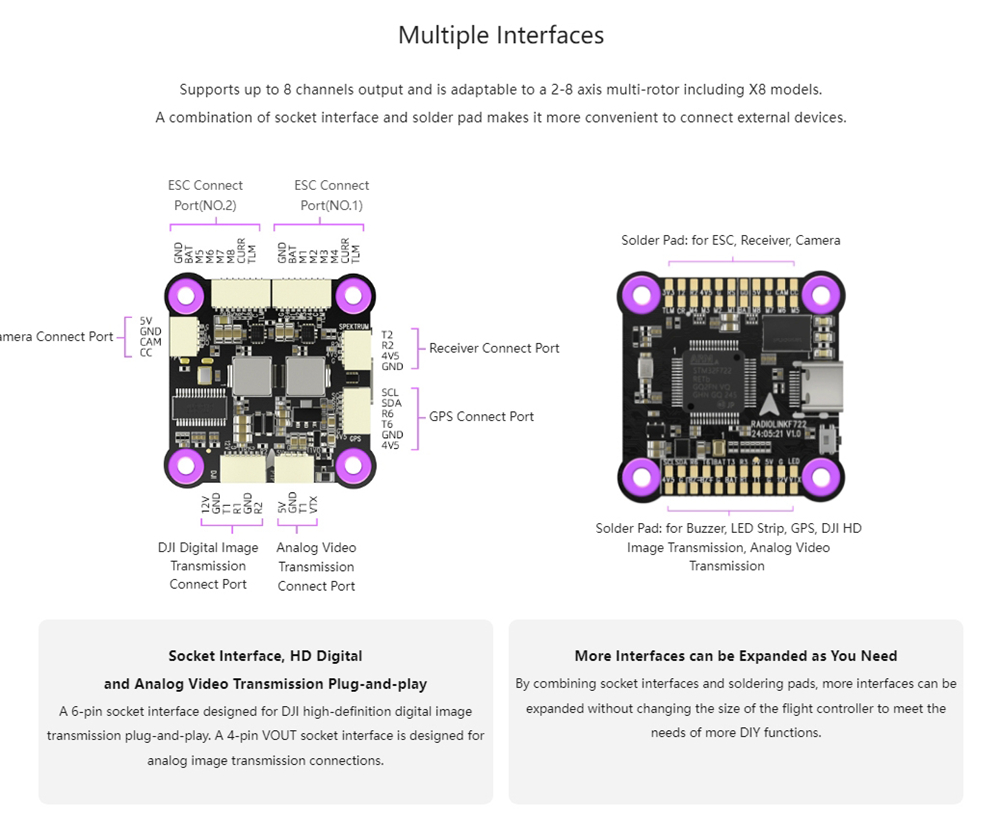

5. Rich interfaces. Support eight-way motor X8 models. Standard sockets and pads all lead out, convenient for users with different needs.

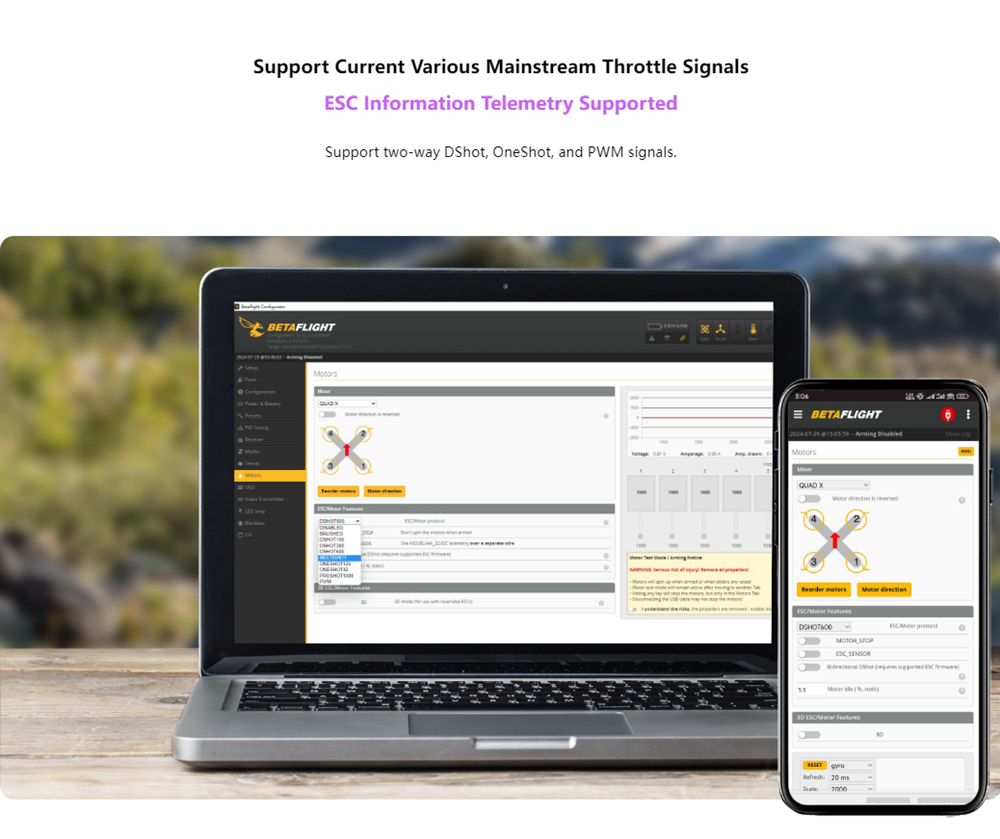

6. Support all kinds of mainstream throttle signals to support the ESC information back to the perfect support for two-way DShot digital throttle communication, OneShot and ordinary PWM signals.

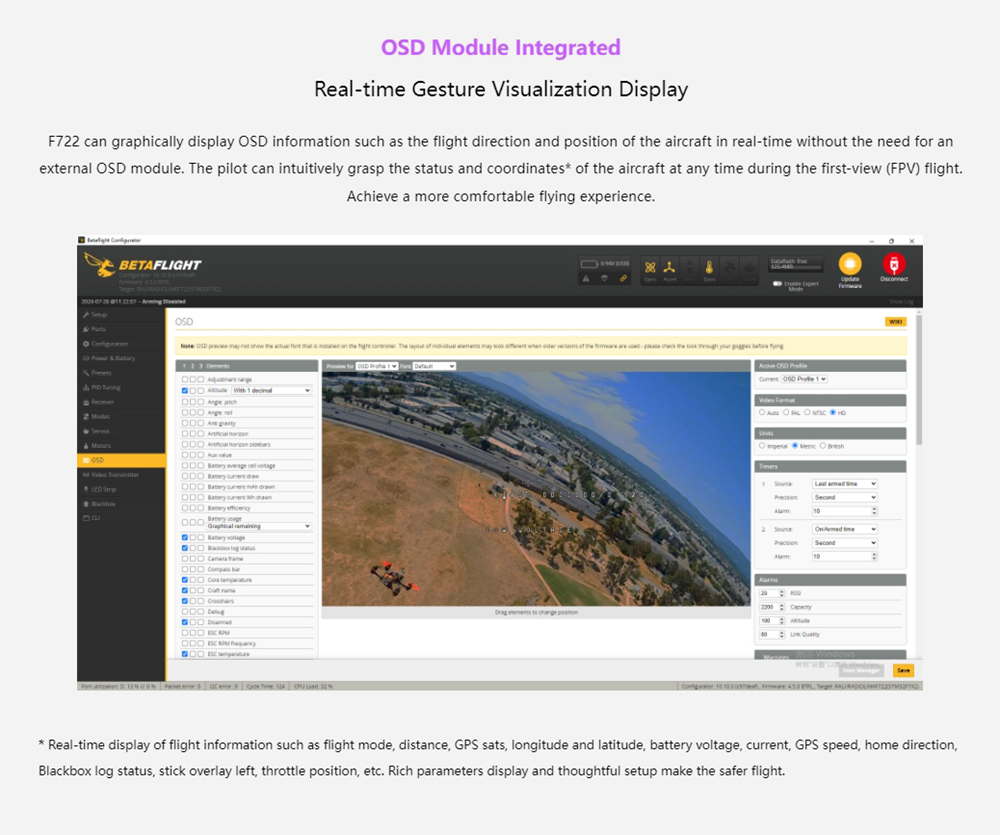

7. Built-in OSD module, one-step parameterization, F722 integrated OSD chip, without external OSD module, you can directly set the OSD parameters in the flight control parameterization software and RC, real-time graphical display of OSD information, such as the direction of flight and the position of the aircraft.

8.  55A 4-IN-1 ESC,3-6S LiPo, Mounting hole size: 30*30 mm ,M3.

Description:

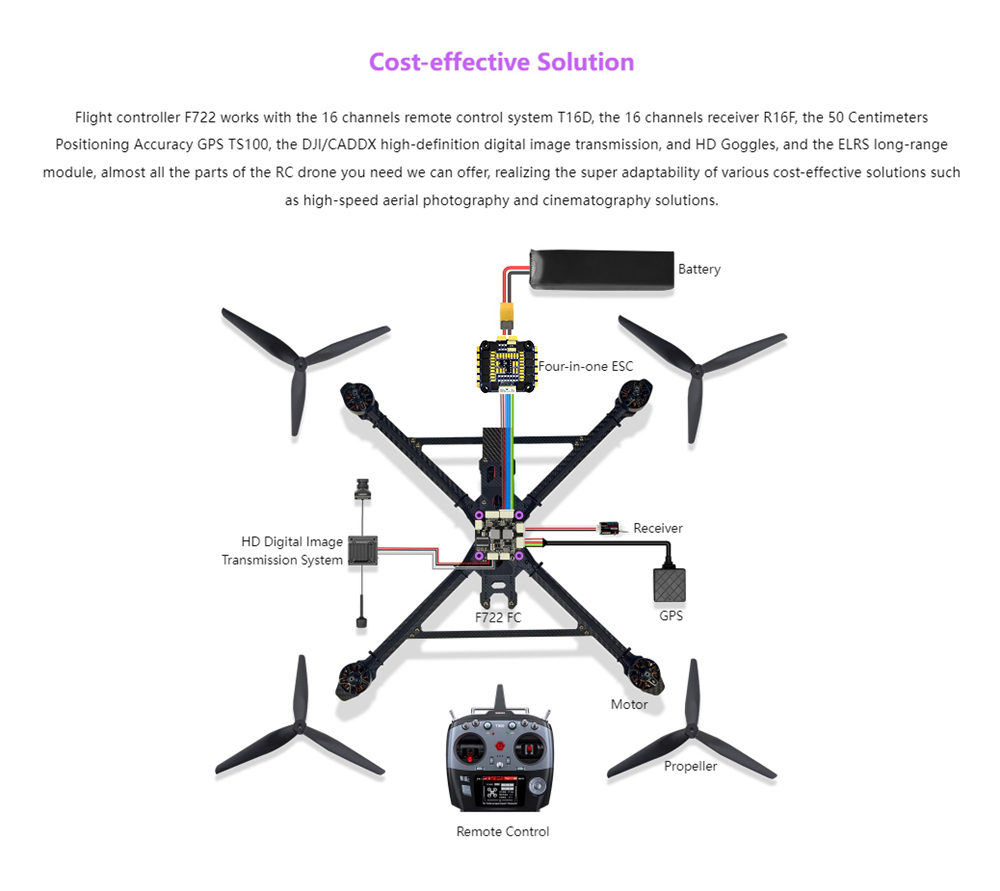

F722 Flight controller: has been designed for optimal control of flight, which allows you to have more control over the flight. Supported models: fixed-wing, helicopter, flying wing, 2-8 axis multi-rotor airplanes including X8 models, and various types of user-made multi-rotor models.

Specifications:

Brand: Bluejay

Name: 55A 4-IN-1 ESC
Input voltage: 3-6S LiPo (11.1-25.2V)
Continuous Current: 55A x 4
Instantaneous current ： 70A x 4 (10s)
Built-in BEC : No
Built-in current sampling: Yes, 11.75mv/A
Mounting hole size: 30*30 mm ,M3
Dimension: 45*45*6 mm
Weight: 33g (with cable)

Brand: Radiolink

Name:  F722 flight controller
Main Processor: STM32F722RET6
Gyro: ICM42688
barometer: SPL06-001
Barometer: BMP280
Black Box: 128MB flight log data storage
Switching power supply chip: MP2491C
Multi-voltage power supply: 3.3V/4.5/5V/12V
Weight: 9.5g for single F722 flight controller
Ounting hole distance: 30.5*30.5mm
OSD Chip: AT7456E
Motor Channel: M1-M8
DJI sky terminal plug-in: support
Analog Mapping Inline: Support
Betafight Camera Adjustment Pad: Supported
Voltage scaling: 110
Number of serial ports: 5 sets of serial ports: Supported
ESC Operational Test Input: Support
12C: Supported
LED pads: Supported
Buzzer Pad: Support
RSSI signal pinout: Support
Firmware type: Betaflight
Firmware Name: RADIOLINKF722
USB Port: 1(Type-c)
Controller-by-Controller Signal (RC In port): SBUS/CRSF
Mapping OSD: Support, built-in mapping OSD module
Supported ESC protocols: PWM/Bi-directional Dshot/Oneshot
Power input: 3-6S
BEC: 3.3V/300mA;4.5V/500mA;5V/3A;12V/3A
12V BEC Switch: Supported (USER1 setting)
Supported models: fixed-wing, helicopter, flying wing, 2-8 axis multi-rotor airplanes including X8 models, and various types of user-made multi-rotor models.
Operating temperature: -30~85-C

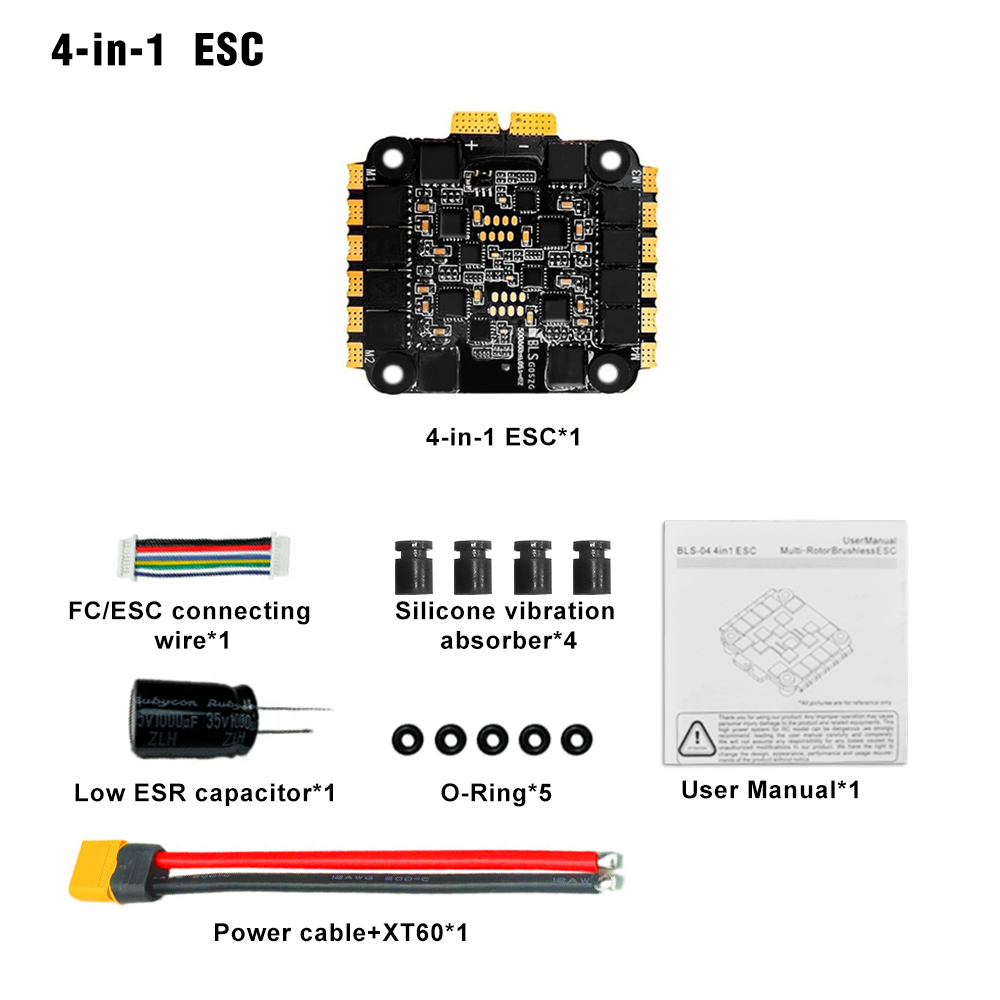

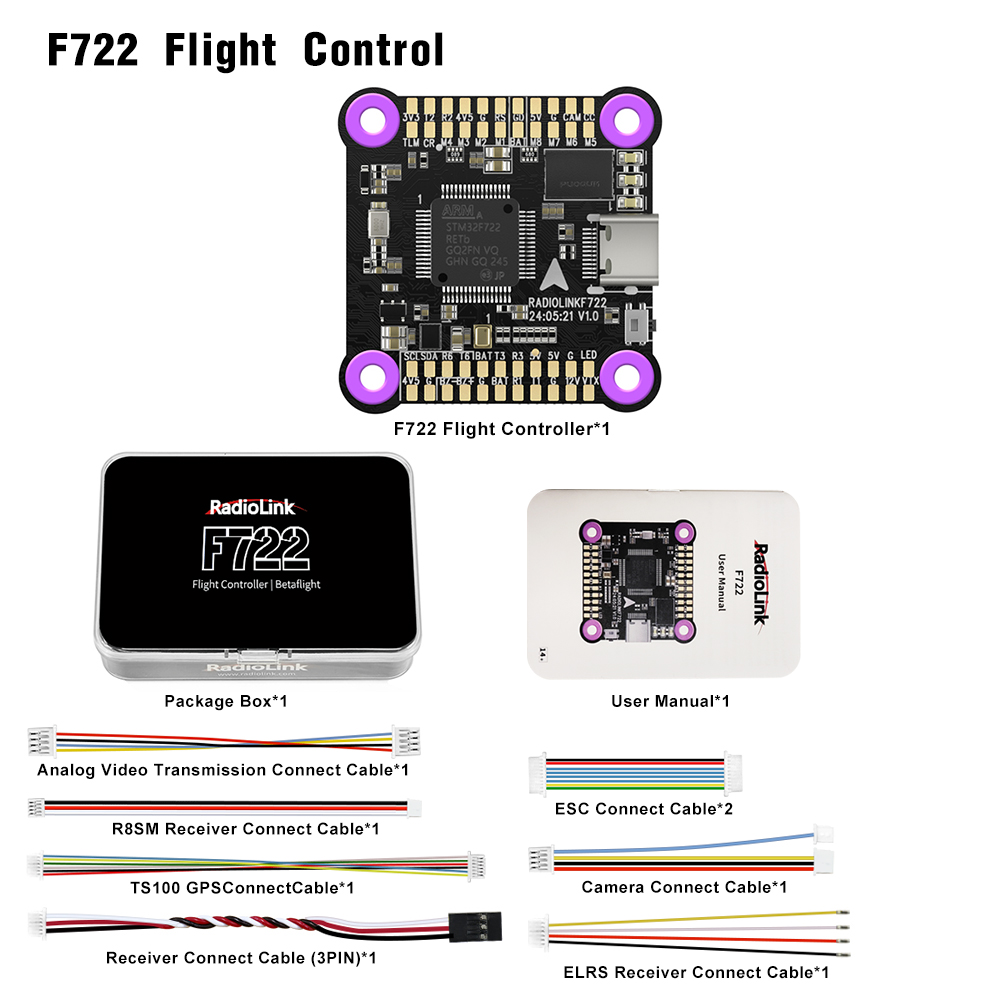

Package contents:
1*F722 Flight Control
1*55A 4-IN-1 ESC

Note:
Only the above package content, other products are not included.
