BETAFPV VR04 HD FPV Goggles with P1 Air Unit HD VTX for FPV

Description

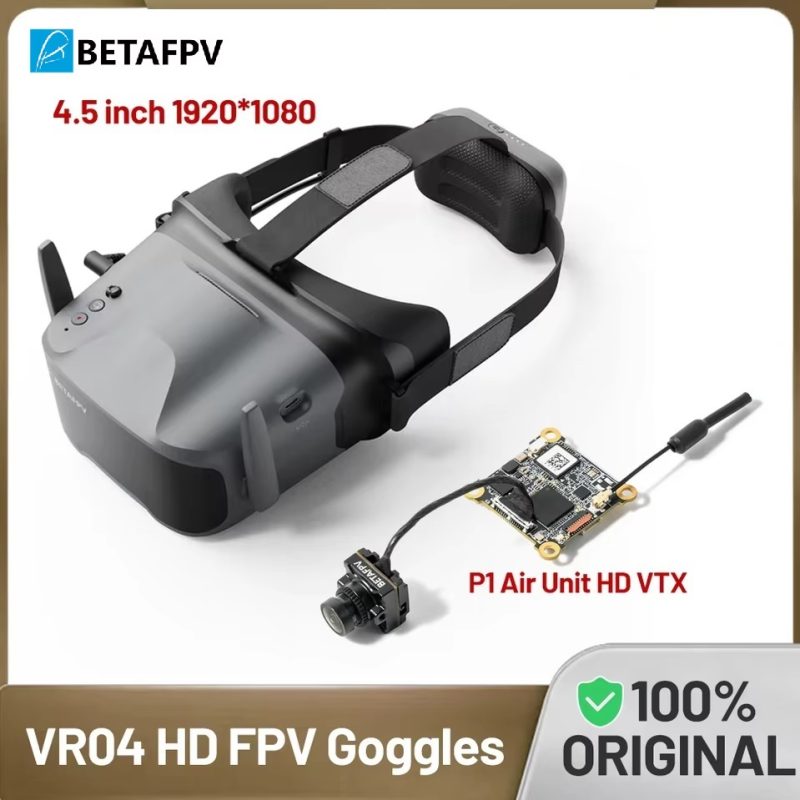

BETAFPV VR04 HD FPV Goggles 4.5 Inch LCD Display Screen 1920*1080p with 2600mAh Battery with P1 Air Unit HD VTX for FPV

Designed for total immersion and comfort, the VR04 HD FPV Goggles feature a glasses-friendly design with ample space, so you never have to remove your eyewear. Enhanced with contoured face padding and a soft rubber nose bridge, they block outside light effectively while fitting securely for longer, more focused sessions. The 2600mAh battery provides up to 3 hours of standby time, while one-button recording lets you effortlessly capture smooth HD footage directly to a microSD card—effortlessly saving and reliving your best flights in crisp detail. Compatible with the P1 Air Unit, VR04 HD gives you the flexibility to build your own setup or fly bind-and-fly models.

Bullet Points

• Glasses-Friendly Fit: Spacious interior lets you wear your glasses comfortably while flying.
• Full Light-Blocking Design: Contoured face padding and a soft nose bridge seal out glare for total immersion.
• P1 Air Unit Compatibility: Bulid your own whoops with P1 Air Unit or bind and fly with P1-supported models.
• Long-lasting 2600mAh Battery: Supports up to 3 hours of continuous use and can be conveniently powered by any 2–6S whoop batteries.
• One-Button Recording: Instantly capture smooth HD footage directly to the goggles with a single press.

Specifications

• Size: 168.8×182.1×98.5mm
• Weight: 400g±10g (battery excluded)
• Display Screen: LCD
• Screen Size: 4.5 inch
• Screen Resolution: 1920*1080
• Transmission Range: >400m
• Bitrate: Max 25Mbps
• Battery: 2600mAh
• Runtime: About 3 hours in normal mode
• Charging Port: Type-C
• Card Slot: MicroSD card (Not included), Supports FAT32 system, maximum 1T storage
• Recording Resolution: 1080P@60fps

Diagram

Total Immersion & Comfort

The VR04 HD FPV Goggles are designed for extended-wear comfort, featuring a glasses-friendly interior that accommodates most eyewear. Premium PU face padding ensures a secure, comfortable fit, while a soft silicone nose bridge seals out external light to deliver a fully immersive flight experience.

Power Flexibility

Equipped with two 2600mAh batteries, the VR04 HD supports up to 3 hours of use on a single charge. For added flexibility, it can also be powered directly by any 2‑6S whoop battery—ideal for extended sessions or quick-swap setups.

Record & Replay

The VR04 HD delivers stunning clarity with a 1920×1080 screen resolution, bringing your flights to life in vivid detail. It also supports smooth 1080P@60fps recording—simply press the record button to capture HD footage directly to a microSD card with support for up to 1TB of storage. Relive your most thrilling moments anytime, in crisp high definition, with no extra gear required.

How to Record A Video?

• Insert a microSD card (maximum 1T) into the card slot;
• Short press the record button to start recording, a red dot appears;
• To stop the recording, short press the button again.

Wide Compatibility

The VR04 HD goggles are compatible with the P1 Air Unit for custom builds, and are bind-and-fly ready with whoops like the Meteor75 Pro P1—so whether you’re building or flying straight out of the box, an immersive HD flight is just a connection away.

Know More About ArtLynk Protocol

The ArtLynk protocol is a low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX. ArtLynk protocol enables real-time HD video at about 60ms latency from glass to glass, which is crucial for smooth flight control and high-quality FPV (First Person View). Here are the key features you may want to know.

• Artosyn Inside & KAP Supported: ArtLynk protocol uses the Artosyn’s latest AR803X chipset, with core technology support provided by KAP (KAP company provides core technology support or product solution to all FPV companies and ensures compatibility for various FPV products using Artosyn chipsets).
• Collaborative and Open Community: ArtLynk protocol is a collaborative FPV ecosystem not belonging to ONLY one company. Many FPV enterprises and teams would design and produce their own products based on the ArtLynk protocol, ensuring broad compatibility and fostering community.

The ArtLynk protocol supports VR04 HD goggles, Aquila20 HD, Meteor75 Pro P1 whoops, and more—letting you customize your own build or simply bind and fly.

BETAFPV P1 Air Unit HD VTX:

ArtLynk Protocol. Built on Artosyn. Powered by Community. The P1 Air Unit is part of the ArtLynk protocol ecosystem—a collaborative, open FPV standard built on the Artosyn AR803X chipset with core technology support from KAP. Unlike closed, proprietary digital systems, ArtLynk is not owned by a single company. Multiple FPV enterprises design and produce compatible products, ensuring broad interoperability and a growing ecosystem. The P1 works seamlessly with VR04 HD Goggles, Aquila20 HD, Meteor75 Pro P1, and future ArtLynk-compatible devices. You’re not locked into one brand’s walled garden.

1080P/60FPS. 20Mbps Bitrate. 170° FOV. The P1 delivers 1080P at 60 frames per second with up to 20Mbps video bitrate—crisp, detailed HD that makes analog feel like a distant memory. The 1/2.9″ CMOS sensor behind a 170° ultra-wide lens captures an expansive, immersive perspective. See gates earlier. React faster. Fly with the clarity that matches the HD transmission.

5km Range. ~60ms Latency. 200mW Output. Real-world open-area testing at 200mW output shows a transmission range of over 5 kilometers. Approximately 60ms glass-to-glass latency keeps your controls responsive—fast enough for freestyle, smooth enough for cinematic cruising. Standby Mode automatically adjusts power based on distance between goggles and drone, maintaining connection even after a crash. 10MHz bandwidth with 3 channels and single antenna design keeps the system simple and lightweight.

6.5 Grams. Your Whoop Won’t Notice. The air unit weighs 6.5 grams including camera (3.61g without). The 14×14mm camera with M2 mounting fits standard micro brackets. The 30×30×5.5mm VTX board with 25.5×25.5mm mounting holes drops into frames designed for digital AIO boards. At this weight, HD is no longer reserved for 5-inch builds—it fits your whoop, your toothpick, and your ultralight micro.

Canvas Mode OSD. Full Betaflight Integration. The P1 supports Canvas Mode via MSP protocol through the standard SH1.0 6-pin port. All Betaflight OSD elements—voltage, current, RSSI, flight mode, warnings—render natively on your HD feed. Compatible with Betaflight FC and BETAFPV FC series. Standard 6-pin plug-and-play connection. No soldering. No complex wiring.

5V Input. FC-Powered Simplicity. The P1 requires 5V DC input—connect directly to your flight controller’s 5V BEC output. Clean power design. Efficient consumption. No external voltage regulator needed.

Key Features:

* ARTLYNK PROTOCOL ECOSYSTEM: Artosyn AR803X chipset + KAP technology. Collaborative open standard. Compatible with VR04 Goggles, Aquila20 HD, Meteor75 Pro P1, and future ArtLynk devices.

* 1080P/60FPS / 20MBPS: Crisp HD video. 1/2.9″ CMOS sensor. 170° ultra-wide FOV. MP4 recording format.

* >5KM RANGE / ~60MS LATENCY: Real-world tested at 200mW. Standby Mode maintains connection after crashes. 10MHz bandwidth. 3 channels.

* 6.5G ULTRALIGHT: 3.61g VTX only. 14×14mm camera. 30×30×5.5mm board. 25.5×25.5mm M2 mounting. HD that fits your whoop.

* CANVAS MODE OSD: MSP protocol. Full Betaflight OSD integration. SH1.0 6-pin standard port. Plug-and-play with Betaflight and BETAFPV FCs.

* 5V INPUT: FC BEC powered. Clean. Simple. Efficient.

* SINGLE ANTENNA / 5.1-5.9GHz: Wide frequency coverage. Simple single-antenna design keeps weight and complexity minimal.

Specification:

Brand:BETAFPV

Model: P1 Air Unit HD VTX

Protocol: ArtLynk (Artosyn AR803X + KAP)

Frequency: 5.1 – 5.9 GHz

Channels: 3

Bandwidth: 10 MHz

Transmission Power (EIRP): <200mW (FCC/SRRC); <25mW (CE)

Video Transmission Range: >5 km (Open Area, 200mW)

Video Transmission LatencyApprox. 60ms (Glass-to-Glass)

Live View Quality: 1080P @ 60FPS

Max Video Bitrate: 20 Mbps

Video Format: MP4

Lens FOV: 170°

Image Sensor: 1/2.9″ CMOS

Camera Mounting: 14mm Width, M2

Camera Dimensions: 14 × 14 × 17 mm

OSD: Canvas Mode (MSP Protocol)

Input Voltage: 5V DC

FC Port: SH1.0 6-Pin

USB Port: SH1.0 4-Pin

Antenna: Single Antenna

Air Unit Dimensions: 30 × 30 × 5.5 mm

Mounting Holes: 25.5 × 25.5 mm (ø2.5mm)

Weight (Camera Included): Approx. 6.5 g

Operating Temperature: -10°C to 40°C

Compatible Goggles: VR04 HD FPV Goggles

Diagram

Reliable Video Transmission

The P1 Air Unit delivers reliable, clear video transmission with a max power output of 200mW and over 5km range*. With approximately 60ms low latency, enjoy stable, static-free video that lets you fly farther and explore with confidence. Standby Mode automatically adjusts power based on the distance between your goggles and the drone, keeping your live view connected even in a crash.

How to Connect with FC

Use the included 6-pin cable to connect the P1 Air Unit to your flight controller. Refer to the diagram below for correct pin alignment and wiring sequence.

File

• User Manual for P1 Air Unit
• Firmware for P1 Air Unit

Recommended Parts

• Goggles: VR04 HD FPV Goggles

Package

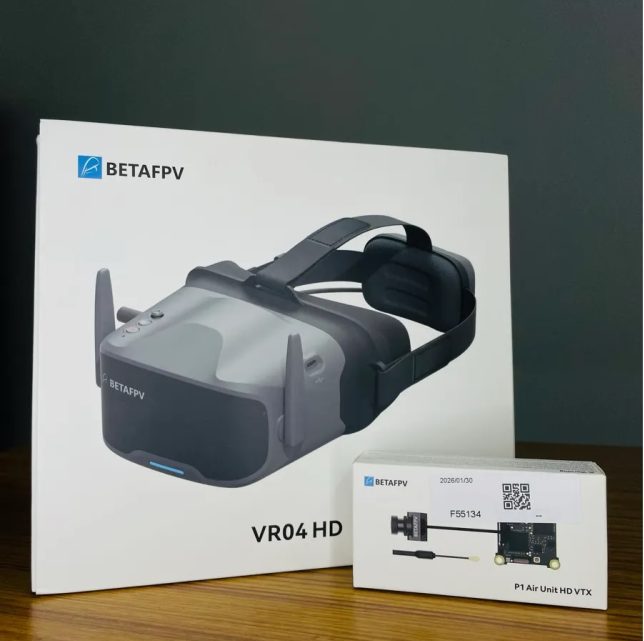

• 1 * VR04 HD FPV Goggles
• 1 * Adjustable Headband
• 2 * 18650 2600mAh Battery
• 1 * User Manual

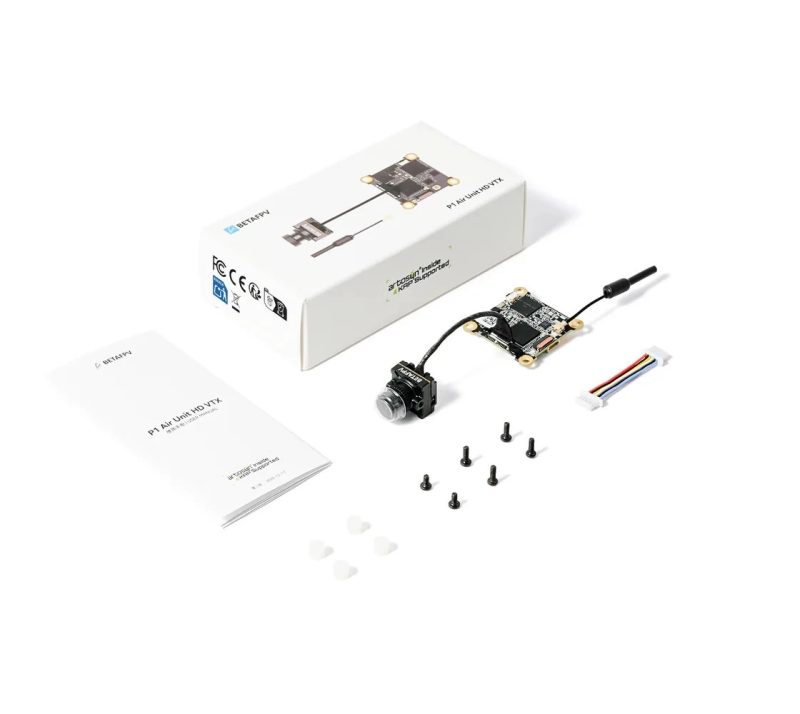

• 1 × P1 Air Unit HD VTX (Camera Included)
• 1 × 6-Pin Cable (SH1.0)
• 1 × Accessories Package (4 × Shock-absorbing Balls, 2 × M2-4 Screws, 4 × M2-6 Screws)
• 1 × User Manual
