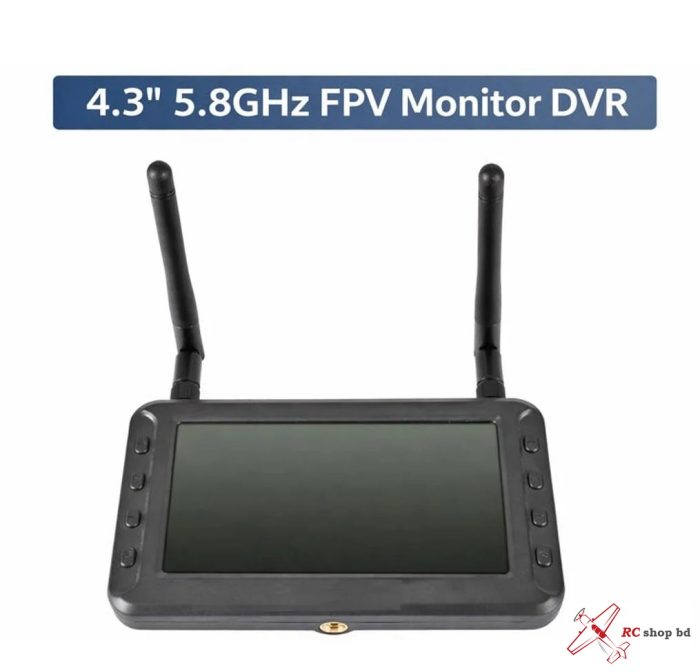

LT-DV01 5.8GHz 4.3inch FPV Monitor with DVR 40Ch

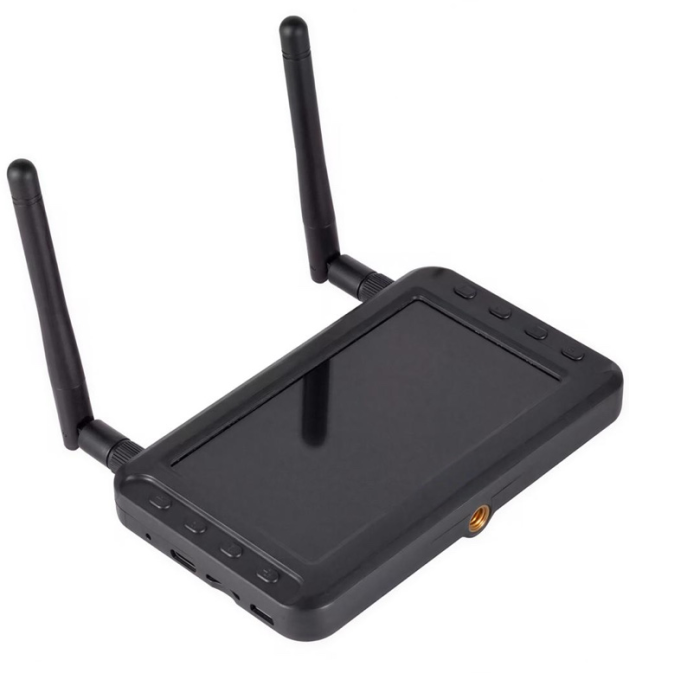

The LT-DV01 is a compact 5.8GHz FPV receiver and DVR with a bright 4.3-inch LCD display, offering a simple and portable way to view and record analogue FPV video. It features dual-mode channel scanning with one-key auto-search, giving you fast signal acquisition whether you’re checking a quad on the bench or monitoring a live feed in the field. The LCD panel delivers clear, high-contrast images, and its ultra-thin, lightweight design makes it easy to carry in any kit bag.

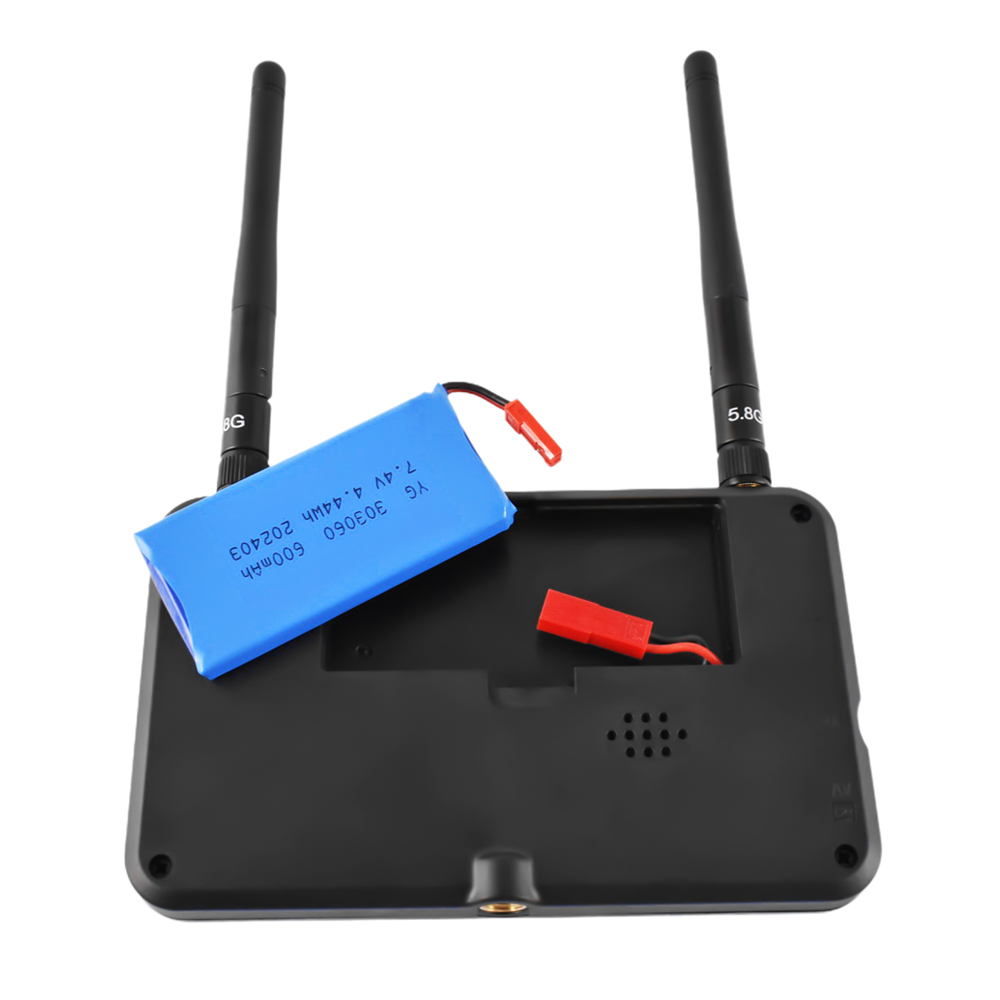

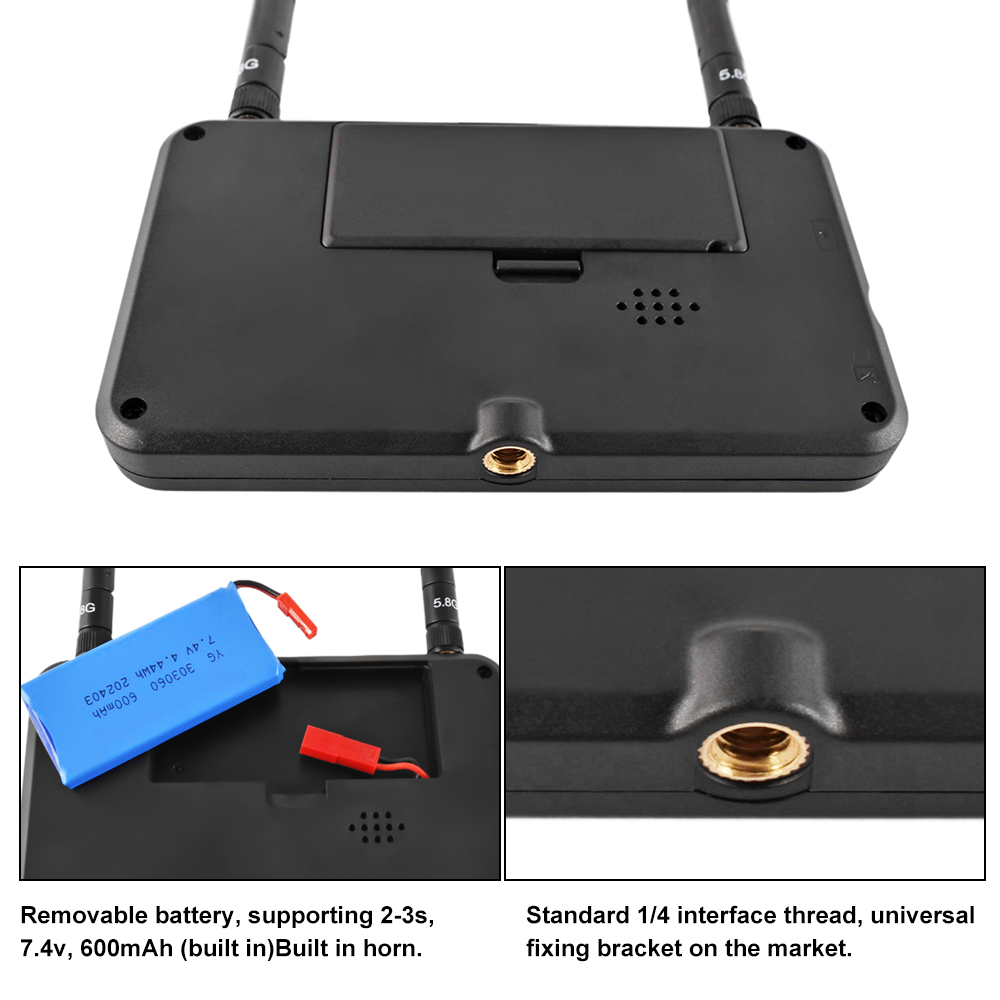

Recording is fully integrated, with one-button photo capture, video recording and playback. Footage is saved directly to a micro-SD card (up to 32GB), making it ideal for quick inspections, line-of-sight testing or gathering reference footage without needing goggles. SD card is not included. The built-in 7.4V 600mAh removable battery offers around 60 minutes of run time and can be recharged via USB-C.

The monitor supports both NTSC and PAL systems, giving broad compatibility with analogue FPV equipment. It uses a standard SMA antenna connection, allowing you to easily upgrade or swap antennas to suit your range and environment.

With low latency, clean video output and intuitive single-button controls, the LT-DV01 is a practical all-in-one solution for pilots, technicians and field engineers needing a reliable, pocketable FPV display.

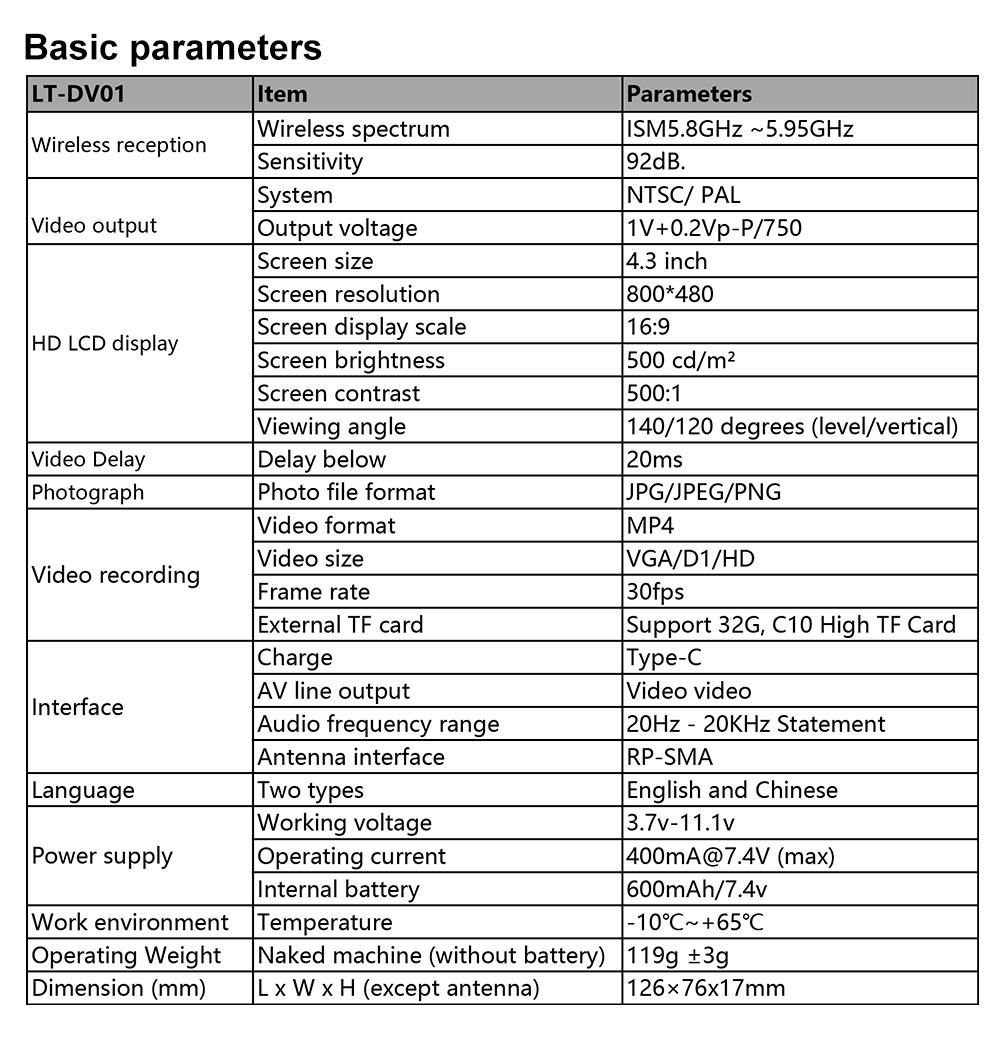

Wireless Reception:
Frequency Range: ISM 5.8GHz ~ 5.95GHz
Sensitivity: 92 dB
System: NTSC / PAL

LCD Display:
Screen Size: 4.3 inch
Resolution: 800 × 480
Aspect Ratio: 16:9
Brightness: 500 cd/m²
Contrast: 500:1
Viewing Angle: 140° (horizontal) / 120° (vertical)

Video Delay:
Latency: <20 ms
Photography / Video Recording
Photo Formats: JPG / JPEG / PNG
Video Format: MP4
Video Resolution: VGA / D1 / HD
Frame Rate: 30 fps
Storage: Supports TF cards up to 32GB (Class 10 recommended)

Interface:
Charging Port: USB Type-C
AV Output: Video out
Audio Range: 20 Hz – 20 kHz
Antenna Connector: RP-SMA
Language Options
English / Chinese

Power Supply:
Working Voltage: 3.7V – 11.1V
Operating Current: 400 mA @ 7.4V (max)
Internal Battery: 600 mAh @ 7.4V

Operating Environment:
Temperature Range: –10°C ~ +65°C
Physical Specifications
Weight (without battery): 119 g ± 3 g
Dimensions: 126 × 76 × 17 mm (excluding antenna)

Note:

Only the above package content, other products are not included.

1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!

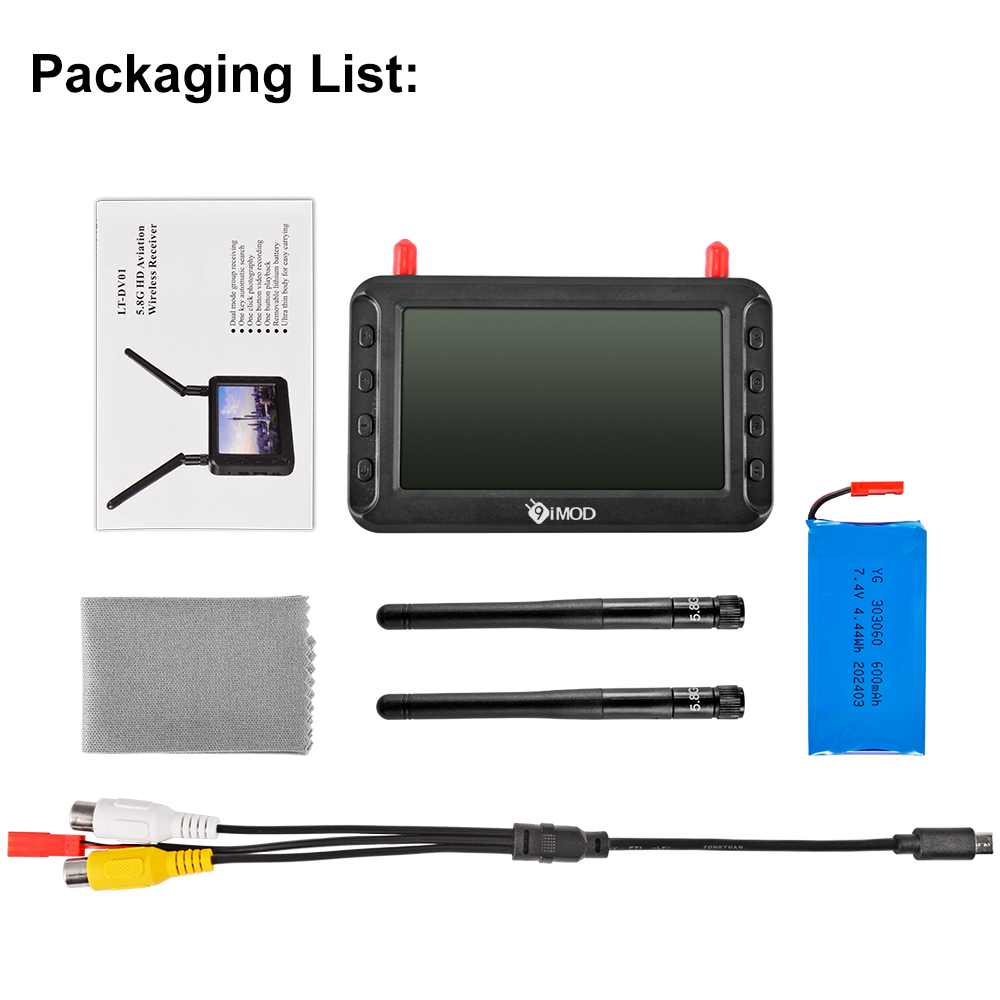

Included:
1 x Display
1 x Audio video cable
2 x Antenna
1 x 7.4V 600mAh Battery
