Mark5 HD 5-Inch FPV Drone Frame Kit X or DC

Description

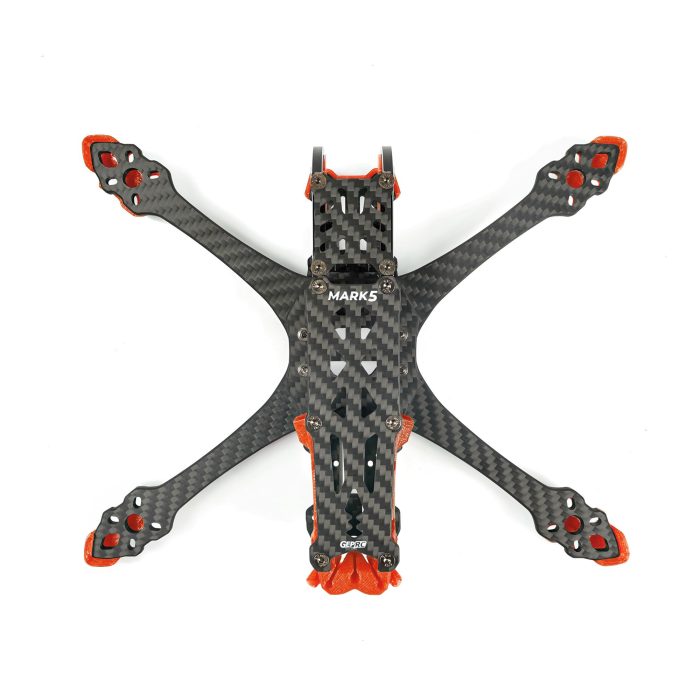

Mark5 HD 5-Inch FPV Drone Frame Kit X or DC

The GEPRC Clone Mark 5 HD 5-Inch FPV Drone Frame X or DC is built for pilots who demand strength, stability, and smooth flight performance. Designed for both freestyle and cinematic flying, this frame provides excellent durability and vibration control, giving you a stable platform for HD cameras like GoPro, Insta360, and DJI O3/O4.

Featuring a robust carbon-fiber build, wide stance arms, and an aerodynamic body design, the Mark 5 HD delivers cleaner footage and better handling even during aggressive maneuvers. GepRC’s advanced shock-absorbing camera mount reduces jello and keeps your FPV recordings crisp and stable.

The frame includes smart hardware placement, allowing easy installation of electronics, flight controllers, ESCs, VTX systems, and antennas. Whether you’re upgrading your build or starting a brand-new FPV project, the Mark 5 HD is one of the most reliable choices in the 5-inch class.

Installation Instructions

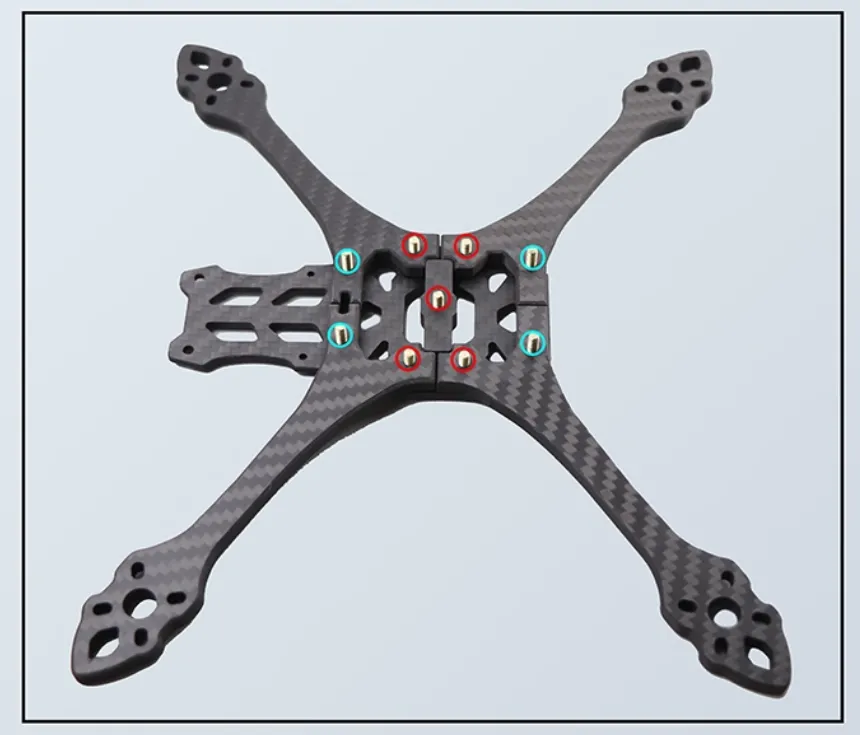

Step 1:

Insert the arms into the base plate one by one, securing them with the center arm stop plate.

Use M3*12 gold cup screws at the red circled locations.

Use M3*14 gold cup screws at the blue circled locations.

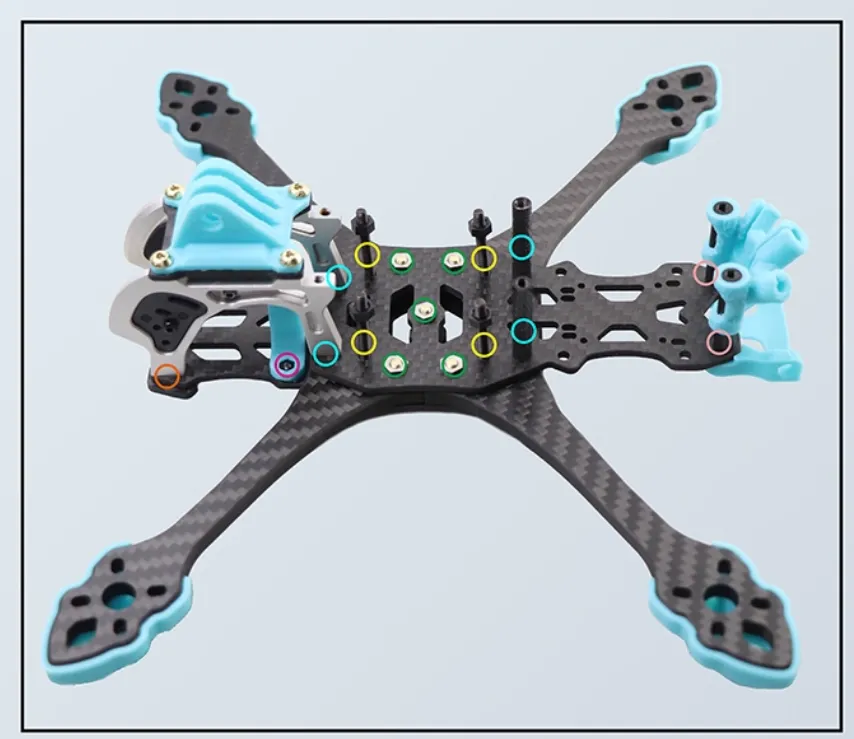

Step 2:

Install the middle plate, aluminum parts, aluminum columns, and printed components in sequence.

Use M3*12 gold cup screws at the green circled positions.

Use M3*14 gold cup screws at the blue circled positions.

Use M3*10 gold cup screws at the orange circled positions.

Use M3*8 gold cup screws at the pink circled positions

Use M2*6 black cup screws at the purple circled positions

Use M3*25 black cup screws at the yellow circled positions

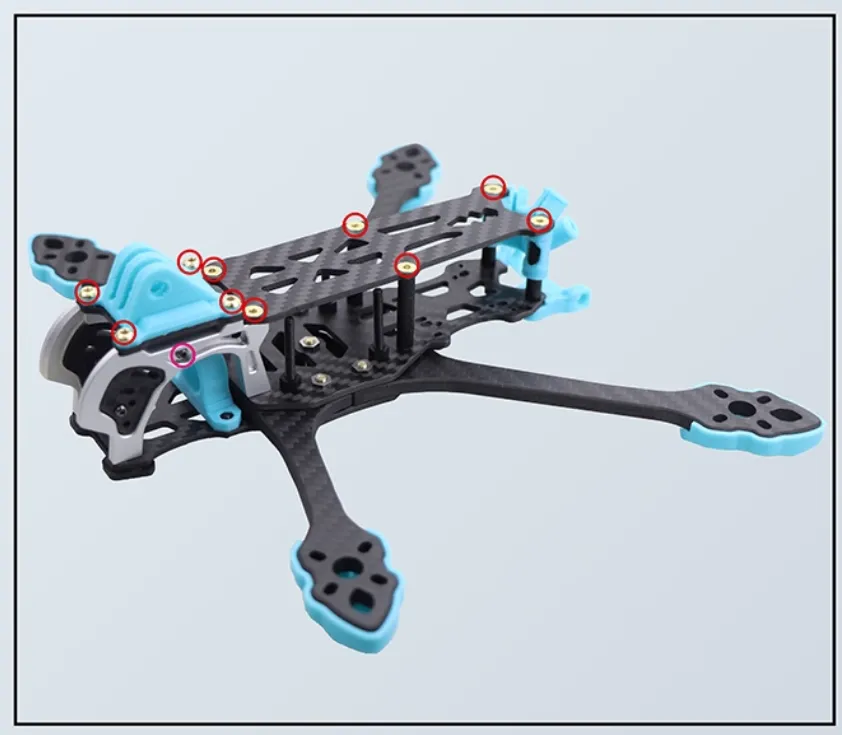

Step 3:

Install the top plate, aluminum column, printed part, and aluminum part in sequence

Use M3*6 gold flat-head screws at the red circled positions

Use M2*6 black cup screws at the purple circled positions

Package included：

1  x MARK5 DC O4 PRO  Frame Kit RED color (X or DC select from options)
