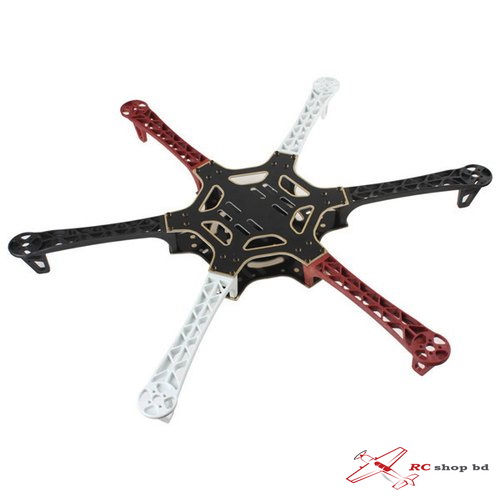

F550 Hexacopter Frame Kit
3,399.00 ৳
In stock
F550 Hexacopter Frame Kit
This F550 Hexa-Copter Frame PCB is made from Glass Fiber which makes it tough and durable. They have the arms of ultra-durable Polyamide Nylon which are the stronger molded arms having a very good thickness so no more arm breakage at the motor mounts on a hard landing. The arms have support ridges on them, which improves stability and provides faster forward flight.
Features :
Built from quality glass fiber and polyamide nylon.
Integrated PCB connections for direct soldering of your ESCs.
Pre-threaded brass sleeves for all of the frame bolts.
Colored arms for orientation to keep you flying in the right direction.
Large mounting tabs on main frame bottom plate for easy camera mounting.
Ideal for carrying larger payloads such as camera systems and other electronic components.
Easy assembly.
Specification:
Item Name: F550 550mm Hexa-Rotor Racing Frame Kit
Wheelbase: 550mm
Material of Frame Arm: Fiber + Nylon
Color of Arm: White + Black + Red
Weight: 424g
– Can directly connect the ESC and power cable to center board
Recommend Parts:
Motor: 2312 Motor
ESC: 30-40A ESC
Propeller: 1045 CW CCW Propeller
Battery: 3-4S Lipo Battery
Package Includes :

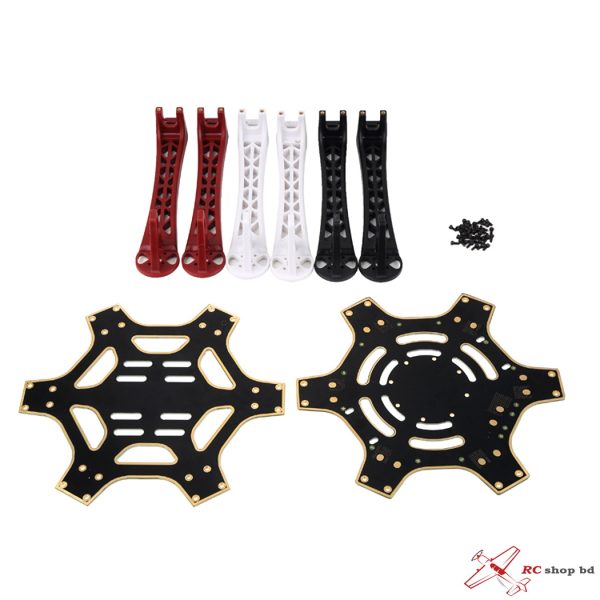

1 x F550 Hexacopter Frame Kit With Integrated PCB Kit
