Description

ESP32 C3 Super Mini Development Board 32-Bit Single-Core Processor 16Pin Type-C

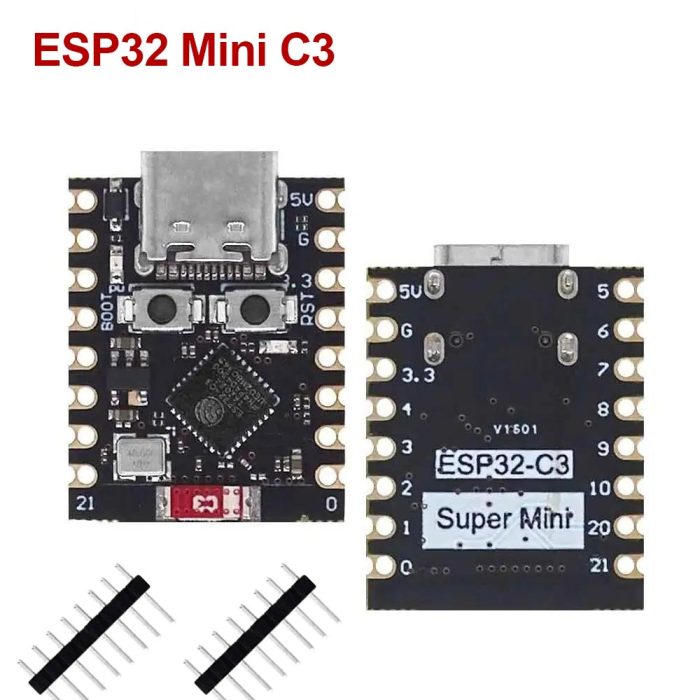

ESP32-C3 Super Mini Development Board
Microcontroller: ESP32-C3
Board Type: Super Mini Development Board
USB Interface: USB Type-C
Input Voltage: 5V
Logic Voltage: 3.3V
Dimensions: Approximately 24mm × 18mm
GPIO Pins: GPIO0 to GPIO12
Analog Input: ADC Supported
Communication: UART
Communication: SPI
Communication: I2C
SPI Pins: SCK, MISO, MOSI, SS
I2C Pins: SDA, SCL
UART Pins: TX, RX
Buttons: BOOT and RST
Power Pins: 5V, 3.3V and GND
Wireless Connectivity: WiFi and Bluetooth
Application: IoT, Smart Home, Industrial Automation, Robotics and Sensor Projects

Features

ESP32-C3 based super mini development board designed for compact IoT and embedded projects.
Extremely compact 24mm × 18mm board size for space-constrained applications.
USB Type-C interface provides convenient power supply and programming connectivity.
Supports WiFi and Bluetooth wireless communication for connected-device applications.
Provides GPIO0 to GPIO12 pins for connecting sensors, modules, displays and other peripherals.
Supports ADC, SPI, I2C and UART communication interfaces.
Dedicated BOOT and RST buttons simplify programming, firmware uploading and resetting.
Includes 5V, 3.3V and GND power connections for easy circuit integration.
Suitable for smart home, industrial automation, robotics, sensor hubs, data loggers and consumer electronics.

Long Product Description:

The ESP32-C3 Super Mini Development Board is a compact and versatile development platform designed for IoT, wireless communication, automation, robotics and embedded electronics projects. Built around the ESP32-C3 microcontroller, this super mini board provides WiFi and Bluetooth connectivity in a very small 24mm × 18mm form factor.
The ESP32-C3 Super Mini Development Board features a USB Type-C interface for convenient power supply and programming. Its compact size makes it particularly suitable for projects where PCB space is limited while still requiring wireless connectivity and multiple programmable GPIO pins.
The board provides GPIO0 through GPIO12, along with 5V, 3.3V and GND connections. Its multifunction GPIO pins support commonly used interfaces including ADC, SPI, I2C and UART. SPI functions include SCK, MISO, MOSI and SS, while I2C provides SDA and SCL connections. UART TX and RX pins are also available for serial communication.
Dedicated BOOT and RST buttons make firmware uploading and board resetting convenient during development. The ESP32-C3 Super Mini Development Board can be used for smart home devices, industrial automation, sensor hubs, low-power data loggers, robotics, consumer electronics and other connected embedded applications.
