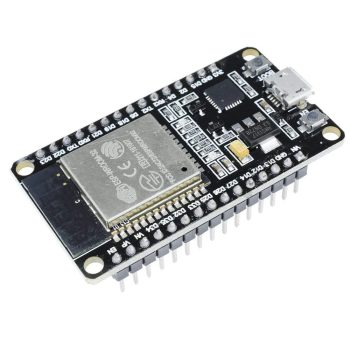

ESP32 Development Board with Bluetooth and WiFi 32BIT Dual Core 240MHZ Processor
520.00 ৳ – 580.00 ৳
ESP32 Development Board with Bluetooth and WiFi 32BIT Dual Core 240MHZ Processor
Features:
1. This is ESP WROOM 32 targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding.
2. At the core of this module is the ESP32 chip, which is designed to be scalable and adaptive. There are 2 CPU cores that can be individually controlled or powered, and the clock frequency is adjustable from 80 MHz to 240 MHz.
3. The user may also power off the CPU and make use of the low-power coprocessor to constantly monitor the peripherals for changes or crossing of thresholds. ESP32 integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, low-noise sense amplifiers, SD card interface, Ethernet, high-speed SDIO/SPI, UART, and I²C.
4. Using Bluetooth, users can connect to their phone or broadcast low energy beacons for its detection. The use of Wi-Fi enables a large physical range, as well as a direct connection to the internet via a Wi-Fi router. Perfect for wearable electronic or battery powered applications, the ESP32 chip uses less than 5µA.
5. In addition, this module can support data rates of up to 150 Mbps and 22 dBm output power at the PA in order to allow for the widest physical range.
6. Type C or Micro USB two type of board available.
Specification:
Supply Voltage: 2.2V～3.6V
Operating temperature: -40°C～85°C
Operating current: 80mA
Support: LWIP protocol, FreeRTOS
Support three modes: AP, STA, and AP+STA
Support：Lua program
Processor：32bit dual-core 240 MHz Tensilica LX6
SRAM：520 KB Flash：16 MByte
Wi-Fi Standard：FCC/CE/TELEC/KCC
Wi-Fi Protocol：802.11 b/g/n/d/e/i/k/r
Bluetooth Protocol：BLEv4.2 BR/EDR
Bluetooth Audio：CVSD and SBC
Peripheral: UART, SPI, I2S, ADC, DAC, I2C
On-Chip Sensors：Hall Effect, Temperature
Weight: 10g
Size: 51.6mmx28.5mm
Application:
Universal low power IoT sensor hub
Home automation
Universal low power IoT recorder
Mesh network
Video streaming of the camera
Industrial wireless control
OTT TV box / set-top box device
Baby monitor
Smart socket
Sensor networks
Wi-Fi toys: Counters, toys, Anti-lost device
Wearable electronic products
Wi-Fi speech recognition device
Wi-Fi location-aware devices
Package Including:
1 x ESP32 Development Board ( 30pin Type-C/30pin Micro USB/38pin Micro USB chose from Variation)
| Variation | 30pin Micro USB, 30pin Type-C, 38Pin Micro USB |
|---|
