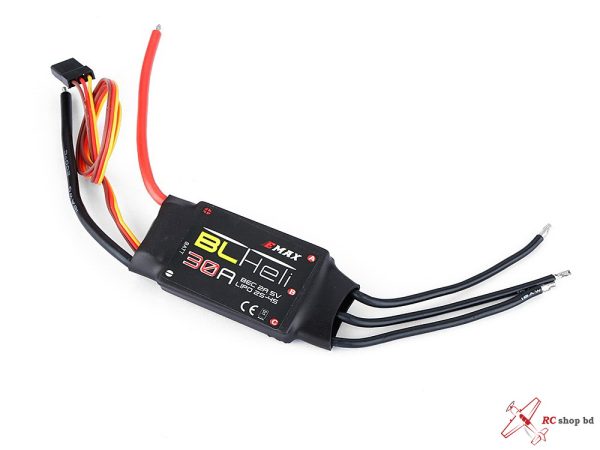

EMAX BLHeli 30A Brushless ESC
Specially deigned for multirotors and compatible with fixed-wing aircrafts and helicopters.
Uses authentic electronic components to ensure high quality and enhance the current endurance ability of the esc.
Based on BLHeli firmware, optimized for high performance with great linearity and much quicker throttle response.
Based on BLHeli firmware, further optimized to the perfect drive performance.
Low-voltage protection, over-heat protection and throttle signal loss protection.
Separate power supply for MCU and BEC, enhancing the ESC’s ability of eliminating magnetic interference.
Parameters of the ESC can be set via program card or transmitter.
Throttle range can be set to be compatible with different receivers.
Equipped with built-in linear BEC or switch BEC.
Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.
Constant Current: 30A
Burst Current: 40A
Battery: 2-4S Lipoly
BEC: 5 V / 2A
Programmable :Yes using transmitter stick.
1 x EMAX BLHeli 30A Brushless ESC
