Dark Horse Model 480A Brushed ESC
1,700.00 ৳
In stock

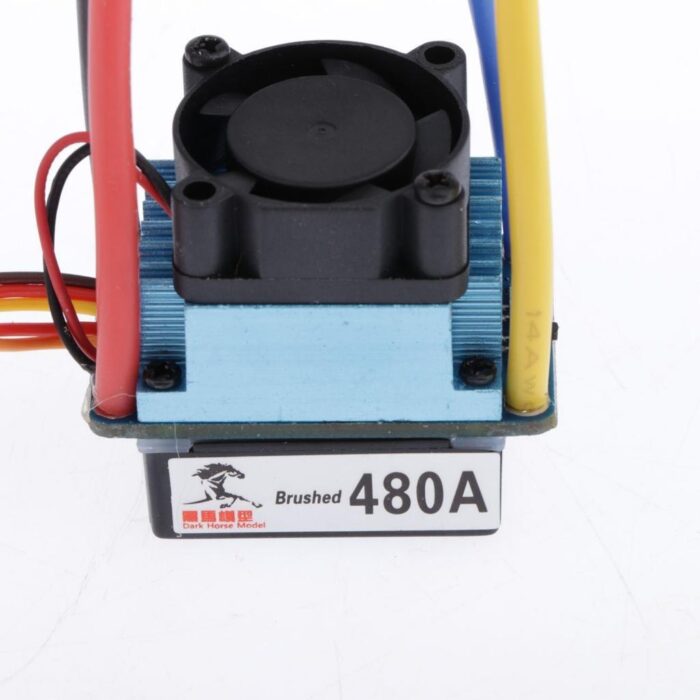

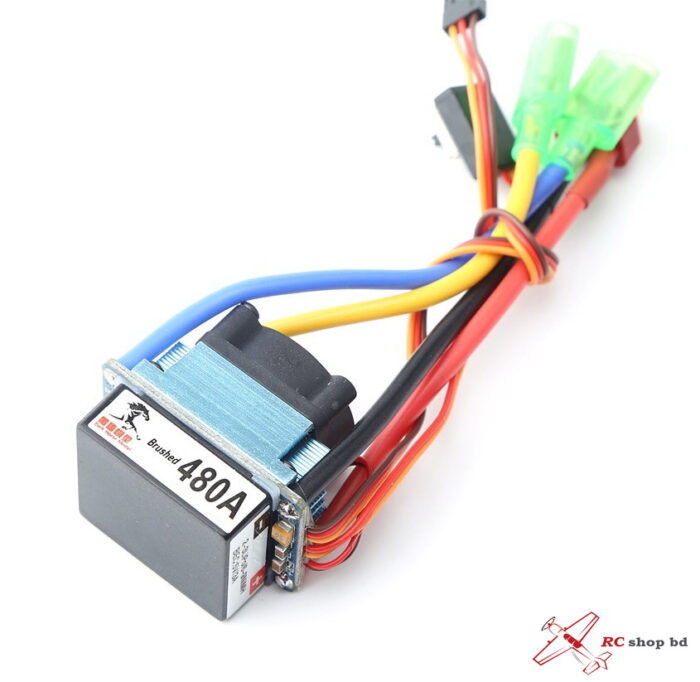

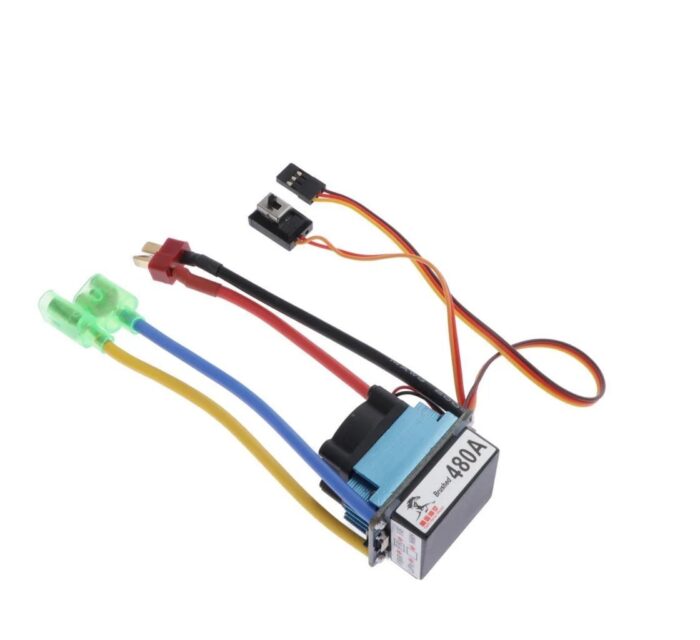

Dark Horse Model 480A Brushed ESC waterproof with T-Plug
Description:
Supports voltage range: 2-3s Lipo or 5-9 NiMH batteries.
Protection voltage: 6v (factory can be set), when the voltage protection is effective, the throttle motor will be activated for 3 seconds to stop, and the throttle valve can be operated again for 3 seconds.
Protection temperature: 90 degrees Celsius. When the ESC temperature reaches 90 degrees, the ESC will stop working completely until the temperature drips down 90 degrees.
Size: 40x27x35mm/1.57×1.06×1.37inch
Specification:
Forward: Continuous current 80A / peak current 480A
Reverse: Continuous current 60A / peak current 300A
2 cell lithium or 6 cell Ni-MH 540, 550, 775 size motors: ≥12T or RPM less than 20,000rpm.
3 cell lithium or 9 cell Ni-MH 540, 550, 775 size motors: ≥18T or RPM less than 15,000rpm.
BEC output: 5v / 3A

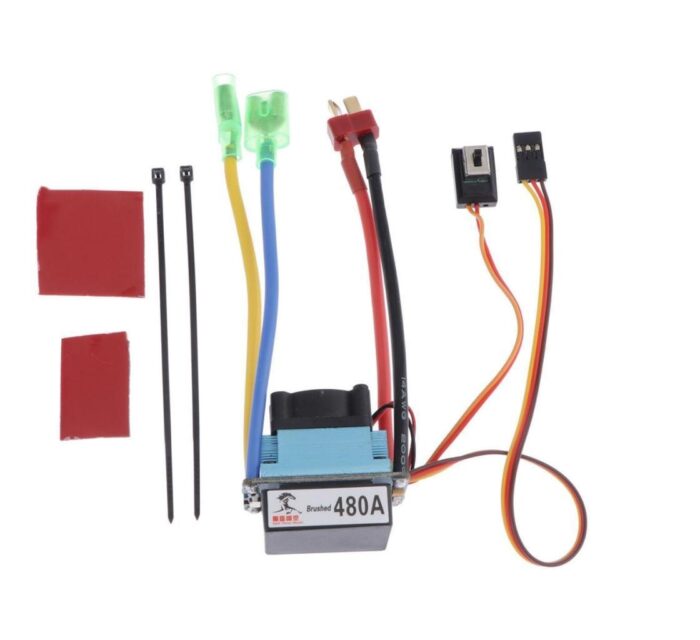

Package Includes:
1 x 480A Brushed ESC
1 x Accessories as shown on picture
