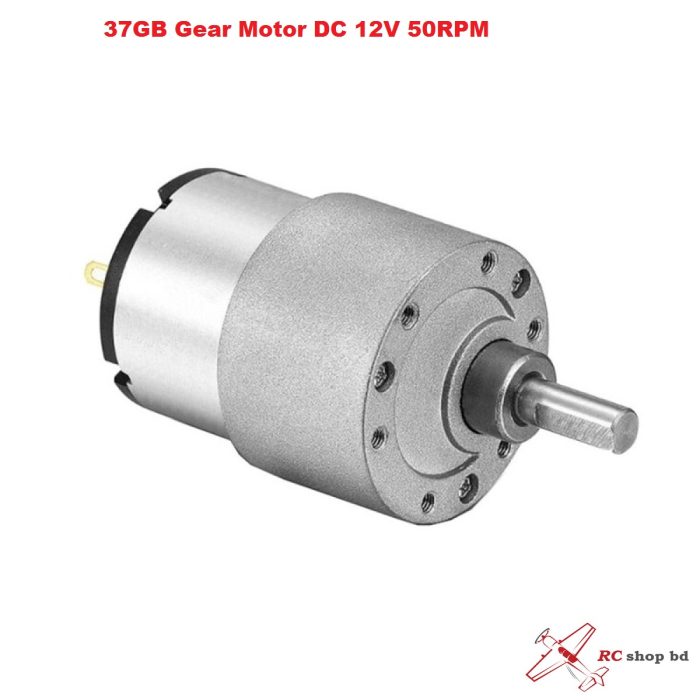

37GB Gear Motor DC 12V 50RPM

Description

37GB Gear Motor DC 12V 50RPM

DC motor is equipped with a brushed motor, which makes the motor more stable and durable. This gearbox motor has high performance and excellent electrical conductivity, which can improve the service life of the product 12V Reduction motor for small smart device parts, like a Full vending machine, small lock, smart toy, etc.

This large and powerful 37GB-520 DC gear motor is available in a wide range of operating voltages and speeds, suitable for almost any project.

Applications:
Vending machines
panoramic cameras
Slot machines
Money detectors
Coin refund devices
Automatic doors
Peritoneal machines, Toys, etc.

Features:
Small gear motor with low speed, low noise, and high torque.
The geared motor adopts pure copper winding, which has the characteristics of low heat generation and low loss.
The metal gearbox has the characteristics of wear resistance and rust resistance, and the motor has a long service life.
The high-torque gear motor has a thickened magnet with a strong magnetic field and strong anti-interference.

Specification:
Model: 37GB-520
Rated Voltage: 12V
Revolving Speed: 50 RPM
Rated Torque: 0.15 kg. cm
Stall Torque: 0.6 kg. cm
Rated Current: 100 mA
Stall Current: 1.2A
Gear Material: Full Metal
Shaft Size: 6 x 15mm(D*L)
Gearbox length(L) :27mm
Shaft Type: D Type
Total Body length: 75mm
weight: 187g

Package Includes:
1 x 37GB-520 DC12V 50RPM/MIN Reduction Motor
