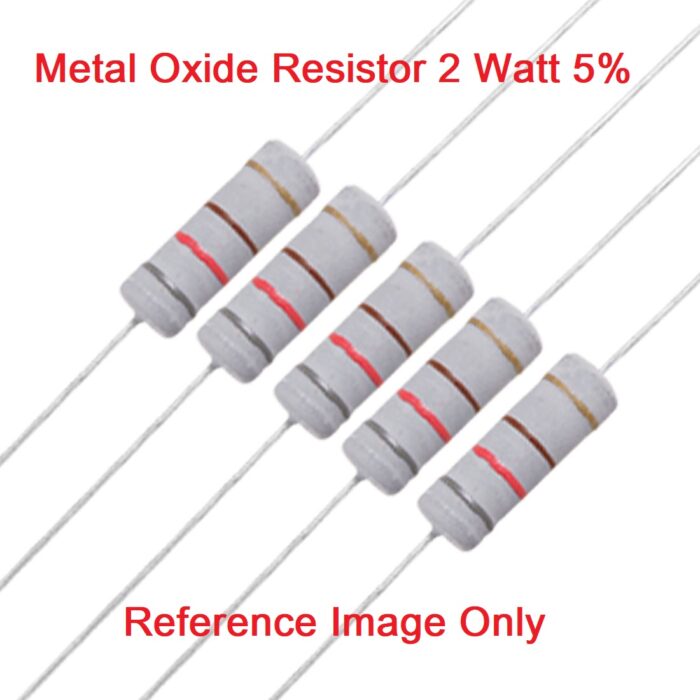

2W Resistors 5% Tolerance
25.00 ৳
2W Resistors 5% Tolerance for DIY Electronic Projects
Features:
Metal oxide film resistors exceed the performance of metal film and carbon film for the following properties: power rating, voltage rating, overload capabilities, surges and high temperatures.
The metal oxide film resistors have 5% tolerance. The temperature coefficient is around -55℃～155℃.
The resistance material for metal oxide resistors is tin oxide that is contaminated with oxide, this is to increase the resistivity. Metal oxide resistors can withstand higher temperatures than carbon or metal film resistors.
Noted: Different Resistance on this listing, please check what you need correctly before purchasing.
Specification：
Rated Power:2W
Maximum working voltage:350V
Maximum overload voltage:600V
Maximum pulse voltage:750V
Dielectric withstanding voltage:350V
Operating temperature range:-55℃～155℃
Resistance Values (Ohm):6.8K
Resistance Tolerance (%):5%
Packaging: Axial
Body Size:5±0.5 mm x 15±1.0 mm
Total Length:59±10mm
Package Content：
10pcs x 2W Resistors 5% Tolerance
| Ohm | 10 Ohm, 47 Ohm, 100 Ohm, 150 Ohm, 220 Ohm, 330 Ohm, 470 Ohm, 1K, 3.3K, 5.6K, 10K, 22K, 47K, 100K |
|---|
