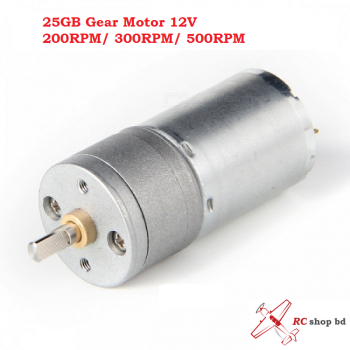

25GB Gear Motor DC 12V 200RPM/ 300RPM/ 500RPM Metal Gear High Torque For Robot Car

25GB Gear Motor DC 12V 200RPM/ 300RPM/ 500RPM Metal Gear High Torque For Robot Car

25GA370 DC12V 200RPM/300RPM/500RPM Gear Motor, This motor has a long , D-shaped metal output that matches the 5mm wheel-motor adapter ,good quality and easy to use. Metal Gear Low Speed High Torque Micro Speed Gear Motor DC Gear Reduction Motor Electric Gearbox Reducer for Mechanical Robot Model

Swap out a poorly running or downright faulty gear box motor for this brand new, high quality 25mm, DC 12V, 200RPM/300RPM/500RPM replacement and give your electrical and testing equipment a new lease of life.

Benefiting from high torque and low noise, this motor is solidly constructed and ready to install in numerous applications.

Features:
1. All the gear of metal mechanism
2. Wear resistance, strong resistance to torsion, smooth transmission, compact structure.
3. D-shaped double axis
4. D-shaped double shaft, excellent thermal conductivity.
5. The terminal with red dot or “+” is connected to the positive side and the other side is connected to the negative pole, the motor rotates forward, and the positive and negative power supplies are reversed to reverse the motor.
6. Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.
7. This product is a straight gear reducer motor, using high precision metal gears, stable operation of the DC motor has greater torque, low speed and low noise.
8. The motor is made of metal gears. It is wear-resistant, avoids broken teeth and has long service life.
9. The motor adopts pure copper coil, which has low calorific value and low loss.
10. Cylinder shape and with 4mm diameter shaft and 2 Terminal connectors.
11. Great replacement for the rusty or damaged DC geared motor on the machine.
12 Widely used in electronic locks, robots, electric curtains, electric doors, micro mixers, monitoring equipment, pet feeders, etc.

Specifications:
Model: 25GA370
Material: Metal
Motor Type: Brushed DC motor
Gearbox: Spur gearbox
Rated Voltage: DC12v
Continuous Current: 60mA
Speed: 200RPM/300RPM/500RPM
Rated power: 3.5 W
Rated Torque: 0.2kg.cm-5kg.cm
Direction: CW/CCW
Output Shaft Dia.: 4mm
Output Shaft Length: 12mm
Motor: 50 x 25mm (without output shaft)
Total length: 70mm
Torque: 60N*cm
Weight: 92g

Application:
Electric lock system, Valve, Vending machine, Pumps, Beauty apparatus, Vending machine, DIY robot toys, Paper shredders, Boat motors, Power tools
For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances,
robots, camera rocker electric paper-cutting paper machines, etc.

Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow slight measuring deviation due to manual measurement.

Package Include:
1 x 25GB Gear Motor DC 12V 200RPM/ 300RPM/ 500RPM (select from option)
