7,500.00 ৳

Out of stock

Description

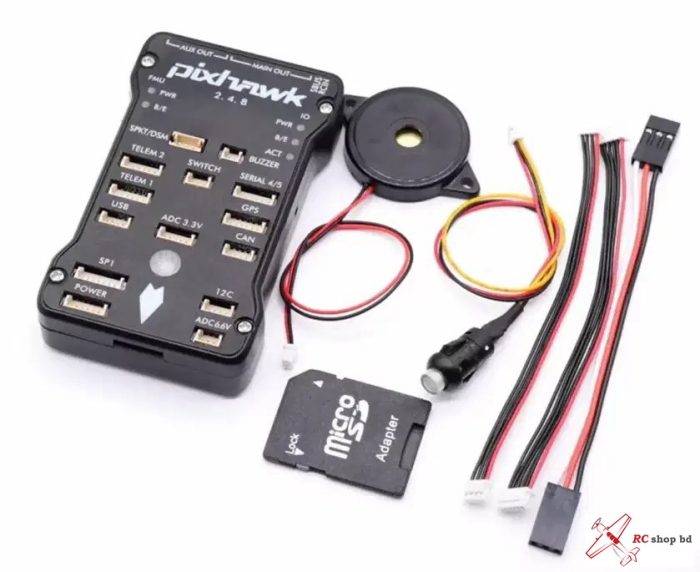

Pixhawk PX4 2.4.8 Flight Controller 32 Bit ARM for Multicopters

Specification:
The board integrates with PX4FMU+PX4IO
Pixhawk is with new 32 bit chip and sensor technology

Processor:
32 bit 2M flash memory STM32F427  Cortex M4, with hardware floating point processing unit
Main frequency: 256K, 168MHZ RAM
32 bit STM32F103 backup co processor

Sensor:
L3GD20 3 axis digital 16 bit gyroscope
LSM303D 3 axis  14 bit accelerometer /magnetometer
MPU6000 6 axis accelerometer / magnetometer
MS5611 high precision barometer

Interface:
5* UART, 1*compatible high voltage, 2*hardware flow control
2*CAN
Spektrum DSM/DSM2/DSM-X satellite receiver compatible input
Futaba SBUS compatible input and output
PPM signal input
Flysky, Radiolink receiver compatible input
RSSI (PWM or voltage) input
I2C
SPI
3.3 and 6.6VADC input
External USB MICRO interface

Features:
– Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;
– Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
– Provide redundant power input and fault transfer function;
– 14* PWM/ actuator output;
– Bus interface (UART, I2C, SPI, CAN);
– Provide automatic and manual mode;
– Color LED lamp;
– Multi tone buzzer interface;
– Micro SD to record flight data;

Packing list:
1 x Pixhawk 2.4.8 32bit ARM Flight Controller
1 x Original shell
1 x Safety button
1 x Buzzer
1 x 1G Micro sd card(IO firmware has written)
1 x 6pin turn 6pin cable
1 x 4pin turn 4pin cable
1 x 3pin DuPont line
