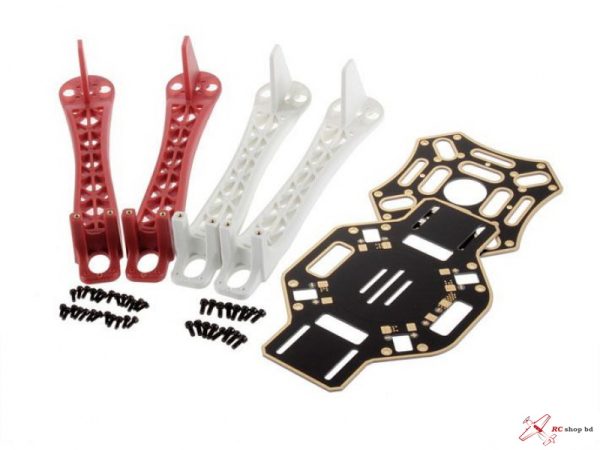

DJI F450 Quadcopter Frame
950.00 ৳
In stock
Features:
DJI F450 Quadcopter Frame Kit Built from quality glass fiber and polyamide nylon.
Integrated PCB connections for direct soldering of your ESCs
Pre-threaded brass sleeves for all of the frame bolts.
Colored arms for orientation to keep you flying in the right direction.
Large mounting tabs on main frame bottom plate for easy camera mounting.
Easy assembly.
Specs:
Width: 450mm
Height: 55mm
Size:21.5*4*5cm (Arm length)
Color:Red + White/Black(Arm)
Weight: 280g (w/out electronics)
Motor Mount Bolt Holes: 16/19mm
G.Weight: 395g
Recommended config (Not Included):
1x Multi-Rotor Control Board
4x A2208 OR A2212 800KV~1100kv brushless motor
4x ESC 30A
1x 2200mAh 3S LiPo battery
4x 1045 OR1047 Forward&Reverse propeller
1x 6CH Transmitter & Receiver
Package Included:
1 x Top board
1 x Bottom board
16 x F-M3*8 screw
24 x F-M2.5*6 screw
4 x Arm
